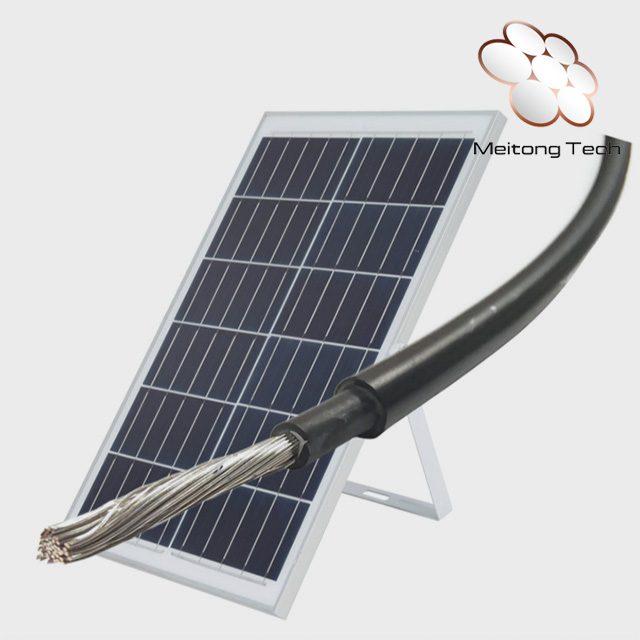

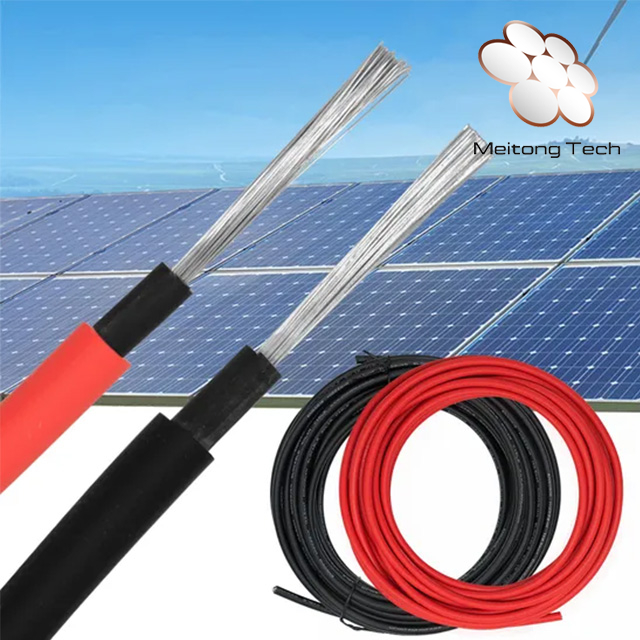

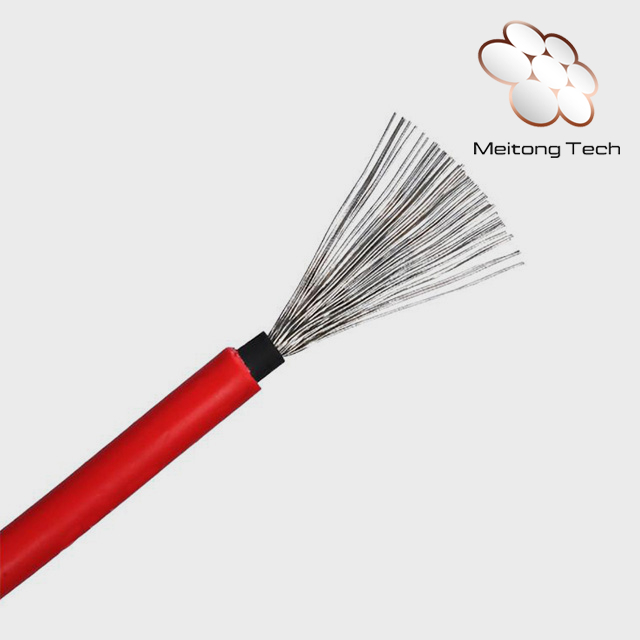

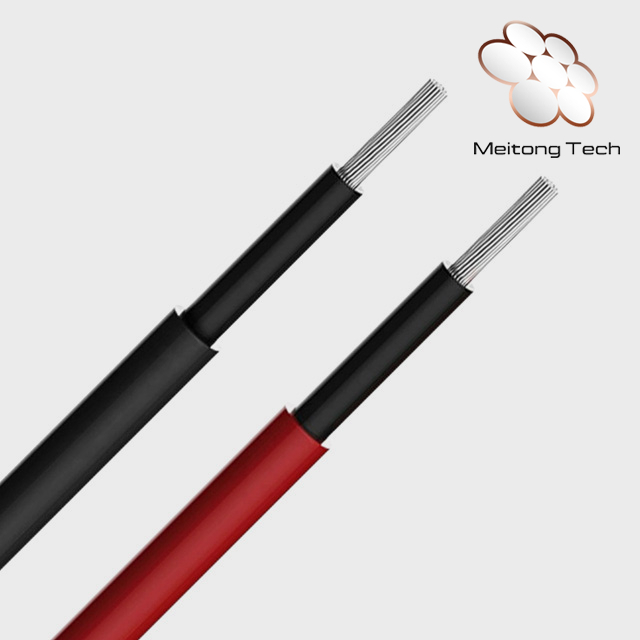

Copper core cable for photovoltaic power generation
>> Product model
Model | Rated voltage | Conductor cross section | Name | Standard number |
H1Z2Z2-K | AC:0.6/1kV; DC:1.5kV | 2.5-240mm² | Copper core cross-linked polyolefin insulated solar photovoltaic cable | prEN 50618: 2014 |
PV1-F | AC:0.6/1kV DC:1.8kV | 2.5-35mm² | 2 Pfg 1169/08.2007 |
Product standards:
This product can be produced according to EU prEN 50618, 2 Pfg 1169/08.2007 or UL 4703 standard, and its performance meets the standard requirements.
Range of application:
It is used for the connection between solar cell modules and modules, the connection between the battery and the inverter, the connection between the battery array and the controller or the DC junction box.
Characteristic:
Equivalent to aluminum alloy photovoltaic cables.
>> Product specifications and important technical parameters
Section（mm²） | (Tinned copper) Type of conductor | Insulation thickness | Approximate outer diameter | 90°C Min Insulation Resistance MQ.km | 20°C Max Conductor Resistance (Q2/km) | ||
PV1-F | H1Z272-K | PV1-F | H1Z272-K | ||||
2.5 | 5 | 0.6 | 0.7 | 5.5 | 5.9 | 0.69 | 8.21 |
4 | 5 | 0.6 | 0.7 | 6.2 | 6.6 | 0.58 | 5.09 |
6 | 5 | 0.6 | 0.7 | 6.8 | 7.2 | 0.5 | 3.39 |
10 | 5 | 0.7 | 0.8 | 7.9 | 8.3 | 0.42 | 1.95 |
16 | 5 | 0.7 | 0.8 | 9.2 | 9.6 | 0.34 | 1.24 |
25 | 5 | 0.7 | 1.0 | 11.2 | 11.7 | 0.34 | 0.795 |
35 | 5 | 0.7 | 1.0 | 12.2 | 13.6 | 0.29 | 0.565 |
Current carrying capacity:
Nominal section（mm²） | Installation method(A) | ||
Exposure to the air | Laying on the surface | Surface connection | |
1.5 | 30 | 29 | 24 |
2.5 | 41 | 39 | 33 |
4 | 55 | 52 | 44 |
6 | 70 | 67 | 57 |
Nominal section（mm²） | Installation method(A) | ||
Exposure to the air | Laying on the surface | Surface connection | |
10 | 98 | 93 | 79 |
16 | 132 | 125 | 107 |
25 | 176 | 167 | 142 |
35 | 218 | 207 | 176 |
>> Temperature deviation conversion factor
Ambient temperature （℃） | Below 60 | 70 | 80 | 90 | 100 | 110 |
Conversion factor | 1.00 | 0.91 | 0.82 | 0.71 | 0.58 | 0.41 |
Aluminum alloy cables (flexible) for photovoltaic power generation system
>> Product standards
2PFG 2642/11.17 , and the performance meets the requirements of Tü2PFG 2642/11.17 or EN50618 standard.
>> Product characteristics and scope of application
It is suitable for outdoor installation under different climatic conditions, and can also adapt to dry or humid indoor working environment. It has the characteristics of long service life and high cost performance.
It is applicable to the connection between solar cell modules, the connection between battery and inverter, and the connection between battery array and controller or DC junction box.
>> Product parameters
Rated voltage：
AC：U0/U:0.6/1KV
DC: 1.5KV、1.8KV(conductor to conductor, ungrounded system, non load line)
(If the cable is used in a DC system, the rated voltage between the two conductors shall not exceed 1.5 times the effective value of the rated voltage U of the cable. In a single-phase grounded DC system, this value should be multiplied by a factor of 0.5.)
Temperature range：
Ambient temperature：-40℃-90℃
Maximum operating temperature of conductor：125℃
Maximum operating ambient temperature of cable：90℃
Allowable short circuit temperature 250 ℃ within 5S
Bending radius. The minimum bending radius is 6 times of the cable diameter
Service life ≥ 25 years
>> Product model
| Model | Name | Application condition | |
| PV/LH-F | Aluminum alloy core solar photovoltaic cable | AA:0.6/1KV DC:below 1.8KV | |
| AAPV1-F | |||
| PV1500V-DC | |||
>> Product specifications and important technical parameters
| Section mm² | Insulation thickness （mm） | Approxima outside diameter （mm） | Reference weight（kg/km） | Maximum resistance at 20 ℃ (Ω/km) |
| 1.5 | 0.7 | 4.5 | 27 | 19.9 |
| 2.5 | 0.7 | 5.0 | 34 | 11.9 |
| 4 | 0.7 | 6.0 | 42 | 7.45 |
| 6 | 0.7 | 6.2 | 52 | 4.96 |
| 10 | 0.8 | 8.3 | 87 | 2.98 |
| 16 | 0.8 | 9.4 | 112 | 1.86 |
| 25 | 1.0 | 11.7 | 172 | 1.19 |
| 35 | 1.0 | 13.6 | 220 | 0.827 |
| 50 | 1.2 | 16.0 | 310 | 0.579 |
| 70 | 1.2 | 18.1 | 413 | 0.413 |
| 95 | 1.4 | 20.4 | 542 | 0.331 |
| 120 | 1.4 | 22.3 | 644 | 0.248 |
| 150 | 1.6 | 25.5 | 730 | 0.199 |
| 185 | 1.6 | 28.0 | 895 | 0.156 |
| 240 | 1.8 | 31.7 | 1015 | 0.124 |
>> Current carrying capacity
| Nominal section mm² | Installation method | ||
| Single core cable exposed to the air | Single core cable laid on the surface | single core cable which surface connected | |
| 1.5 | 24 | 23 | 19 |
| 2.5 | 32 | 32 | 26 |
| 4 | 43 | 41 | 35 |
| 6 | 55 | 53 | 45 |
| 10 | 77 | 73 | 62 |
| 16 | 104 | 99 | 85 |
| 25 | 139 | 132 | 112 |
| 35 | 172 | 164 | 139 |
| 50 | 225 | 214 | 182 |
| 70 | 261 | 248 | 211 |
| 95 | 336 | 319 | 272 |
| 120 | 407 | 387 | 330 |
| 150 | 462 | 439 | 374 |
| 185 | 514 | 488 | 416 |
| 240 | 616 | 585 | 499 |
>> Temperature deviation conversion factor
| Ambient temperature（℃） | Below 60 | 70.0 | 80 | 90 | 100 | 110 | |
| Conversion factor | 1.00 | 0.91 | 0.82 | 0.71 | 0.58 | 0.41 | |
