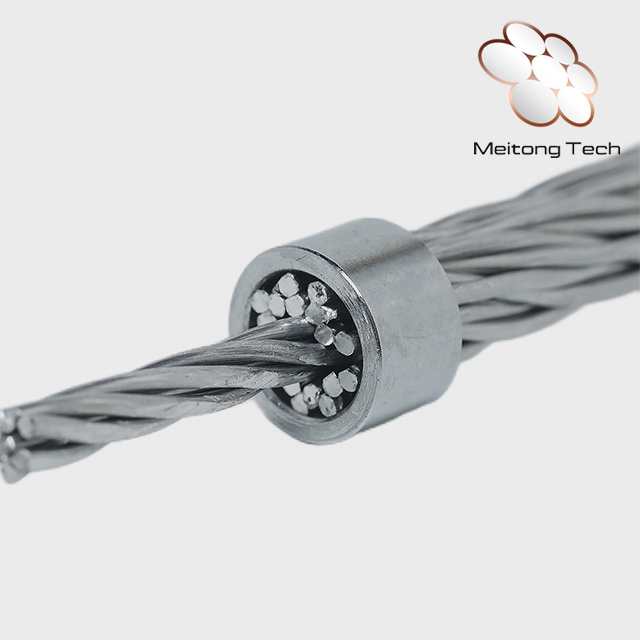

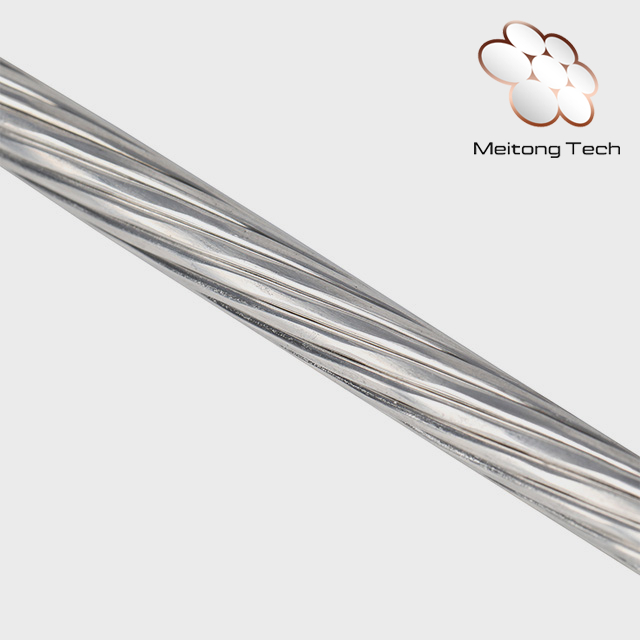

Aluminium Alloy Stranded Wire is a high - performance solution that strikes an optimal balance among conductivity, weight reduction, and mechanical strength. It serves as a versatile choice for multiple industries, catering to applications where efficiency and durability are paramount.
Lightweight: Weighs about 50% less than copper, making it ideal for weight - sensitive installations. This property eases transportation, handling, and reduces structural loads in applications like overhead lines.
Good Conductivity: Fulfills the performance requirements of numerous low - voltage applications. Ensures efficient electricity transmission, minimizing power losses during distribution.
Corrosion Resistance: The treated alloy surface resists oxidation, enhancing the wire's lifespan, especially in harsh environmental conditions such as coastal or industrial areas.
Cost - Effective: A perfect fit for large - scale projects. Its lower material cost compared to some alternatives, combined with weight savings, reduces overall project expenses.
High Tensile Strength: Offers enhanced mechanical durability, enabling it to withstand mechanical stresses during installation and operation, like wind loads on overhead lines.
Automotive: Used in wiring harnesses, where its lightweight and conductivity contribute to vehicle efficiency and performance.
Power Distribution: Essential for distributing electricity in urban and rural grids, ensuring reliable power delivery.
Overhead Lines: Ideal for overhead power transmission due to its lightweight and high tensile strength, reducing the need for excessive structural support.
Building Wiring: Suits internal building wiring, providing a cost - effective and efficient electrical conduction solution.
Customized plating thickness: Tailor the plating to meet specific environmental and performance needs.

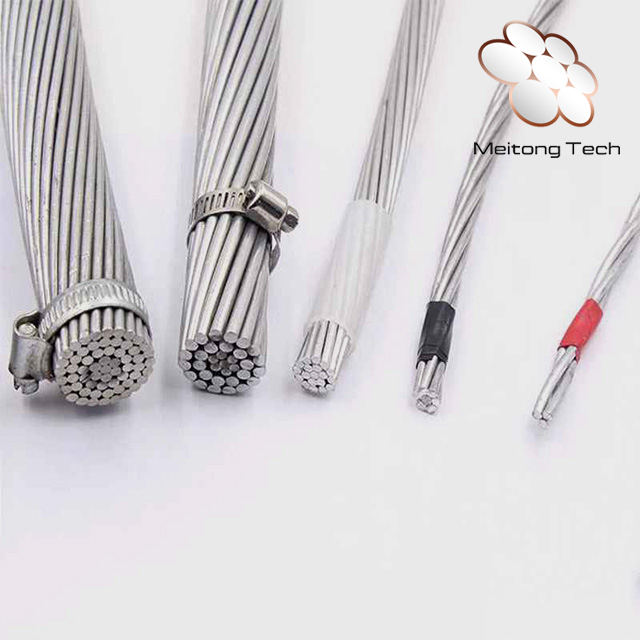

Special strand constructions: Design the stranding pattern to optimize flexibility, strength, or other mechanical properties.
Specific resistance and tensile targets: Match the wire's electrical and mechanical characteristics precisely to your project requirements.
Insulation & shielding options: Choose the right insulation and shielding materials for enhanced safety and performance in different applications.
Specification and Technology date | |||||||
Code | Nom.area | Stranding | cla Size | O.D | mass | Strength | Resistance(20℃) |
mm² | No./mm | mm² | mm | kg/km | kgf | Ω/km | |
Box | 15 | 7/1.85 | 18.82 | 5.55 | 51 | 537 | 1.7495 |
Acacia | 20 | 7/2.08 | 23.79 | 6.24 | 65 | 680 | 1.384 |
Almond | 25 | 7/2.34 | 30.1 | 7.02 | 82 | 861 | 1.0934 |
Cedar | 30 | 7/2.54 | 35.47 | 7.62 | 97 | 1014 | 0.9281 |
- | 35 | 7/2.77 | 42.18 | 8.31 | 115 | 1205 | 0.7804 |
Fir | 40 | 7/2.95 | 47.87 | 8.85 | 131 | 1367 | 0.688 |
Hazel | 50 | 7/3.30 | 59.87 | 9.9 | 164 | 1711 | 0.5498 |
Pine | 60 | 7/3.61 | 71.65 | 10.83 | 194 | 2048 | 0.4594 |
- | 70 | 7/3.91 | 84.05 | 11.73 | 130 | 2402 | 0.3917 |
Willow | 75 | 7/4.04 | 89.73 | 12.12 | 245 | 2565 | 0.3669 |
- | 80 | 7/4.19 | 96.52 | 12.57 | 264 | 2758 | 0.3441 |
- | 90 | 7/4.44 | 108 | 13.32 | 298 | 3112 | 0.3023 |
Oak | 100 | 7/4.65 | 118.9 | 13.95 | 325 | 3398 | 0.2769 |
- | 100 | 19/2.82 | 118.7 | 14.1 | 326 | 3393 | 0.2787 |
mulberry | 125 | 19/3.18 | 150.9 | 15.9 | 415 | 4312 | 0.2192 |
Ash | 150 | 19/3.48 | 180.7 | 17.4 | 497 | 5164 | 0.1831 |
Elm | 175 | 19/3.76 | 211 | 18.8 | 580 | 6030 | 0.1568 |
Poplar | 200 | 37/2.87 | 239.4 | 20.09 | 659 | 8841 | 0.1385 |
- | 225 | 37/3.05 | 270.3 | 21.35 | 744 | 7724 | 0.1227 |
Sycamorc | 250 | 37/3.22 | 303.2 | 22.54 | 835 | 8664 | 0.1093 |
Upas | 300 | 37/3.53 | 362.1 | 24.71 | 997 | 10350 | 0.09156 |
Walnut | 350 | 37/3.81 | 421.8 | 26.67 | 1162 | 12053 | 0.0786 |
Yew | 400 | 37/4.06 | 479 | 28.42 | 1319 | 13685 | 0.06921 |
Totara | 425 | 37/4.14 | 498.1 | 28.98 | 1372 | 14233 | 0.06656 |
Rubus | 500 | 61/3.50 | 586.9 | 31.5 | 1620 | 16771 | 0.05662 |
Araucaria | 700 | 61/4.14 | 821.1 | 37.25 | 2266 | 23450 | 0.01047 |
