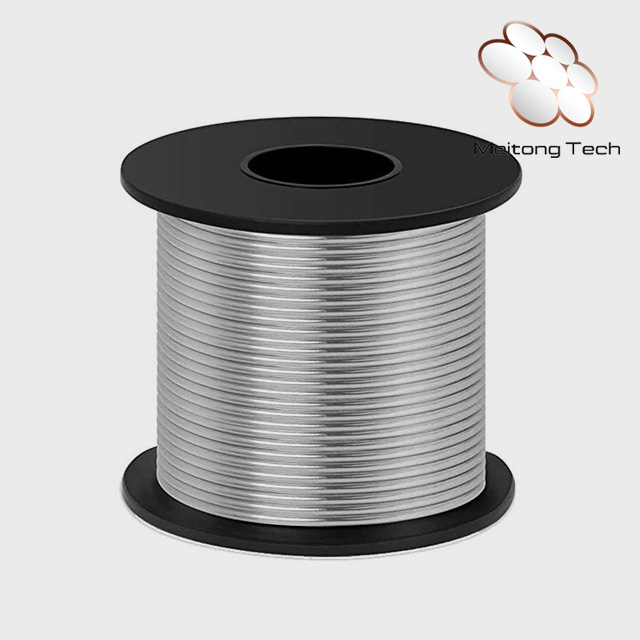

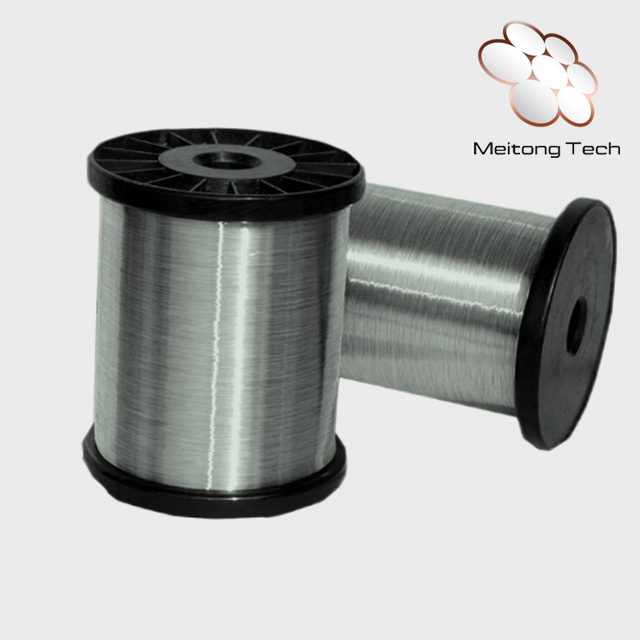

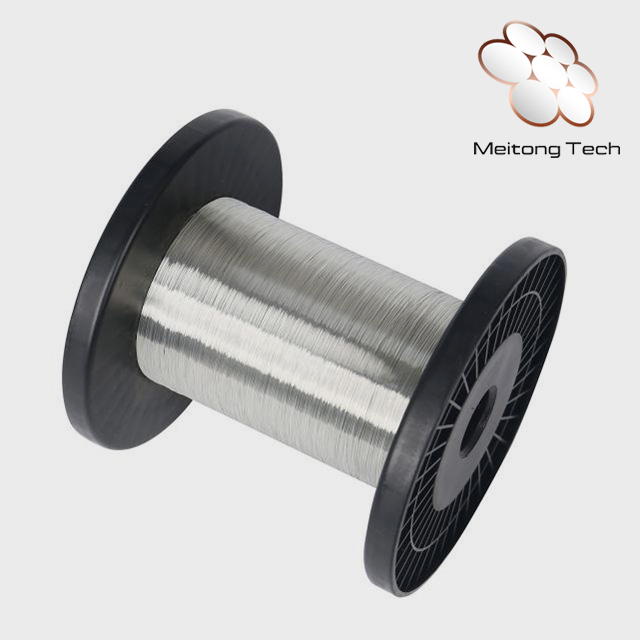

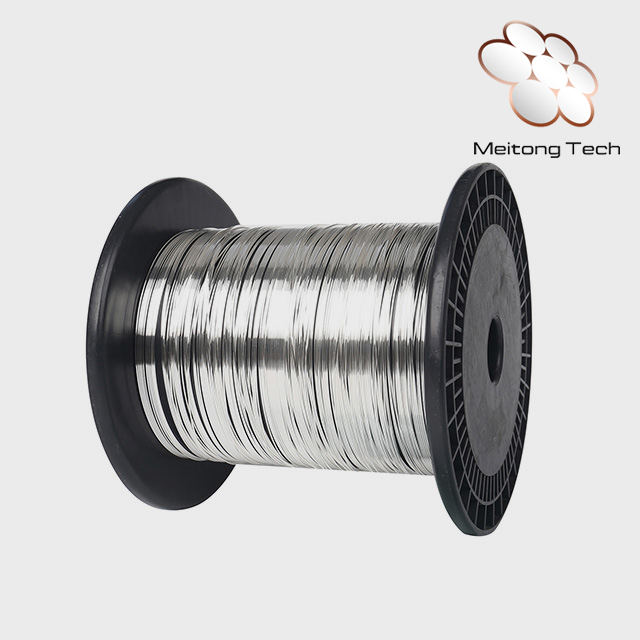

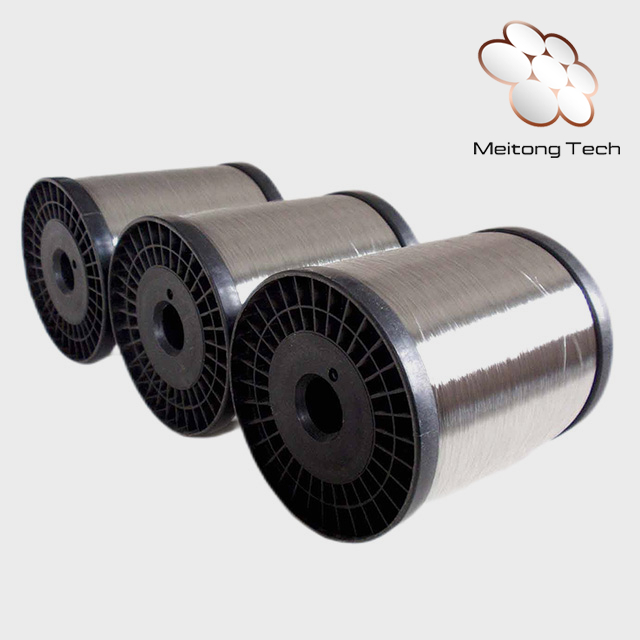

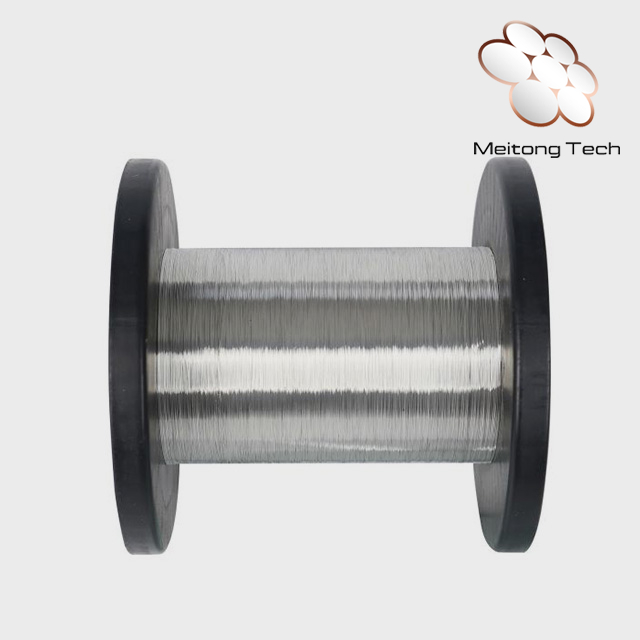

Tin - Plated Copper Wire, also known as Tinned Copper or CCA, is a high - performance conductor material. It combines the excellent conductivity of copper with the corrosion - resistant properties of tin plating. This makes it an ideal choice for a wide range of applications in the communication, electronic, and power industries.
Electronic Components: Serves as leading wires, ensuring stable electrical connections for various electronic parts.
Plug - ins: Used as jump wires, facilitating the interconnection within plug - in devices.
Transformer: Acts as transformer skeleton pins, contributing to the efficient operation of transformers.
Capacitance and Fuses: Functions as capacitance fuses and fuse material, playing a crucial role in over - current protection.
Braided Wire: Can be made into braided wire, which is useful in situations requiring flexible and conductive connections.
Nominal Diameter (mm) | Allowable Tolerance (mm) | Thickness of Silver(μin) | Tensile Strength(Mpa) | Elongation (nominal distance 250mm) (%) | |||
Ⅰ | Ⅱ | R | Y/TY | R | TY | ||
0.08 | ±0.003 | 0.3<h≦0.5 | 0.5<h≦1 | ≧320 | ≧900 | ≧10 | ≧0.5 |
0.10 | |||||||
0.12 | |||||||
0.16 | |||||||
0.2 | |||||||
0.254 | |||||||
0.3 | ±0.01 | 5<h≦10 | 10<h≦15 | ≧290 | ≧900 | ≧10 | ≧1.5 |
0.4 | |||||||
0.5 | |||||||
0.51 | 1100-1250 | ||||||
0.59 | ≧900 | ||||||
0.60 | |||||||
0.61 | 900-1100 | ||||||
0.63 | |||||||
0.65 | |||||||
0.7 | |||||||
0.71 | |||||||
0.8 | ±0.015 | ≧800 | |||||
0.83 | 850-1000 | ||||||
0.91 | ≧700 | ||||||
1.0 | ±0.02 | ||||||
1.1 | |||||||
1.2 | |||||||
Our tin - plated copper wire has a more comprehensive range of nominal diameters, allowing for precise selection in different projects.
The tin plating thickness is strictly controlled, ensuring better corrosion resistance and longer service life.
In terms of tensile strength and elongation, our product meets or exceeds industry standards, providing more reliable performance in applications such as electronic component connections and transformer operations. Whether in high - stress or flexible connection scenarios, our tin - plated copper wire can perform stably.
