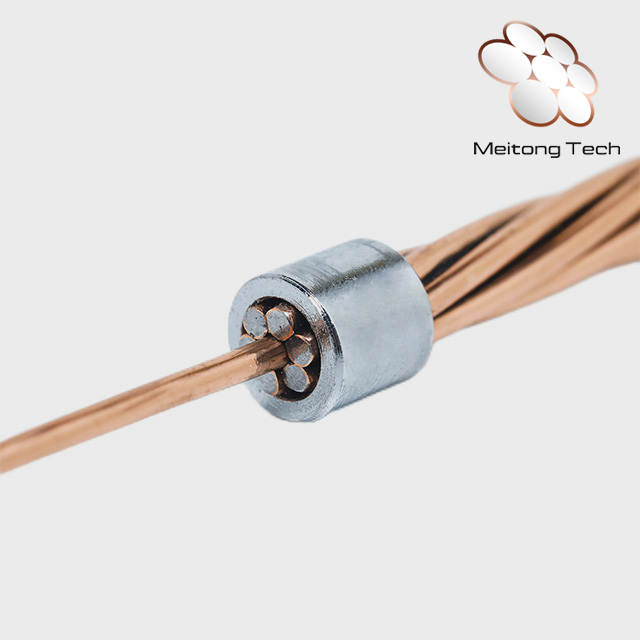

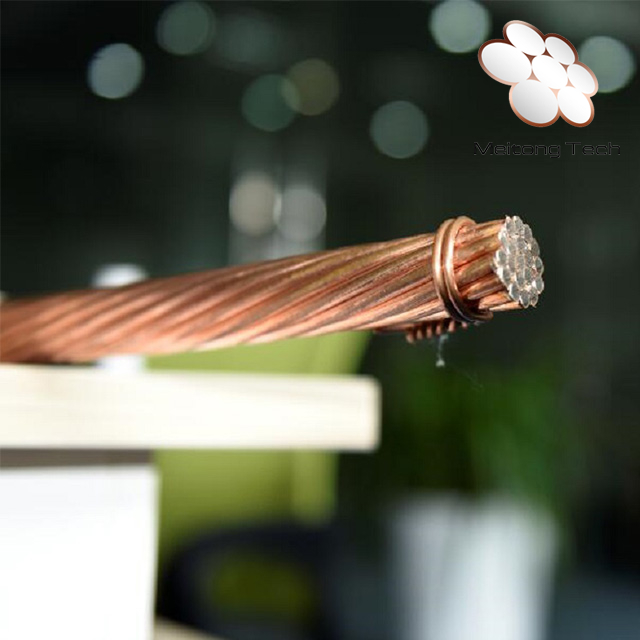

Copper Claded Steel Stranded Wire (CCS bunched wire) is a composite wire featuring a high - strength steel core coated with copper. This unique structure endows it with enhanced conductivity and tensile performance, making it a versatile solution for multiple industries.
Grounding systems: Ensures safe dissipation of electrical charges, protecting equipment and structures from electrical hazards.
Lightning protection: Conducts lightning currents safely to the ground, safeguarding buildings, power systems, and other facilities.
Railway signaling: Provides stable signal transmission for railway communication and control systems, ensuring the safe and efficient operation of trains.
Coaxial cables: Used in the construction of coaxial cables, contributing to good signal quality and transmission efficiency.
Specification and Technology data | |||||
Section area (mm²) | Diameter of single wire(mm) | Number of strand | Diameter of the entire Strand(mm) | Weight for reference(kg/km) | Electrical conductivity of a single wire(%) |
16 | 1.70 | 7 | 5.10 | 130 | 14-40 |
25 | 2.14 | 7 | 6.36 | 200 | |
35 | 2.52 | 7 | 7.50 | 280 | |
50 | 3.00 | 7 | 9.0 | 400 | |
1.80 | 19 | ||||
70 | 3.50 | 7 | 10.0 | 500 | |
2.14 | 19 | ||||
95 | 2.52 | 19 | 12.6 | 766 | |
120 | 2.84 | 19 | 14 | 980 | |
150 | 3.15 | 19 | 15.8 | 1230 | |
2.28 | 37 | ||||
185 | 3.52 | 19 | 17.5 | 1520 | |
2.52 | 37 | ||||
240 | 4.00 | 19 | 20.0 | 1970 | |
2.88 | 37 | ||||
300 | 3.20 | 37 | 22.4 | 2430 | |
