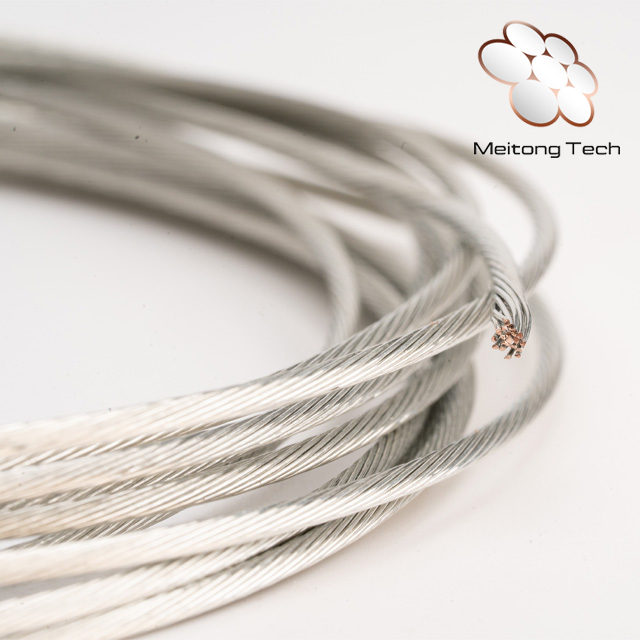

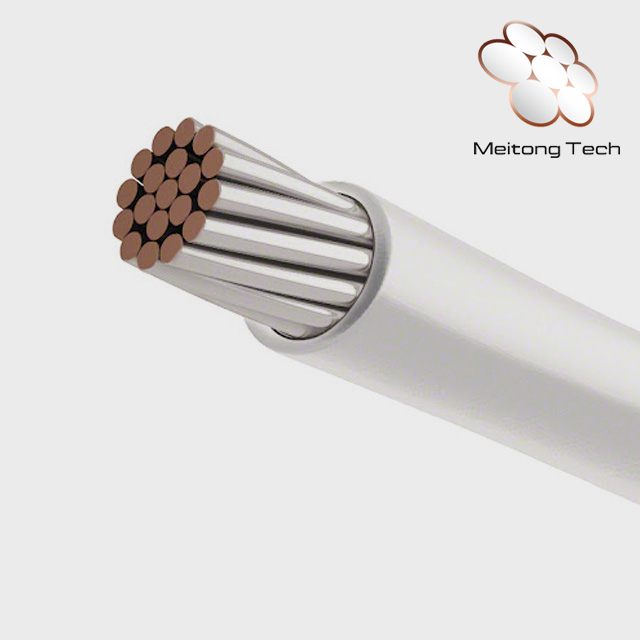

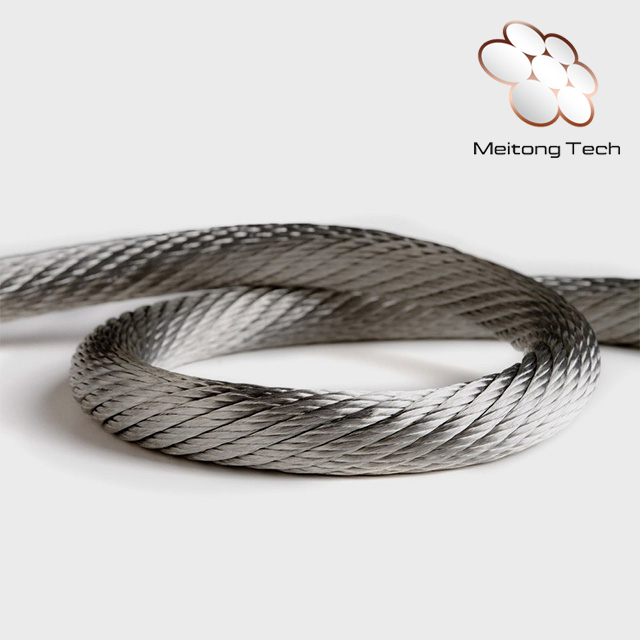

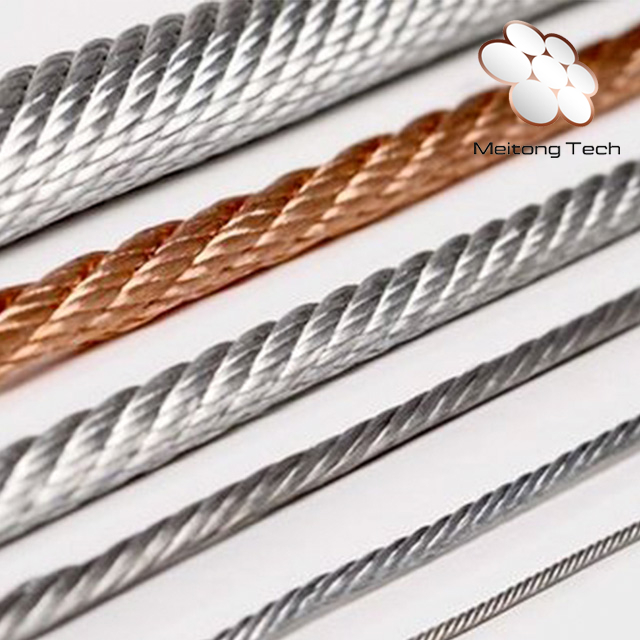

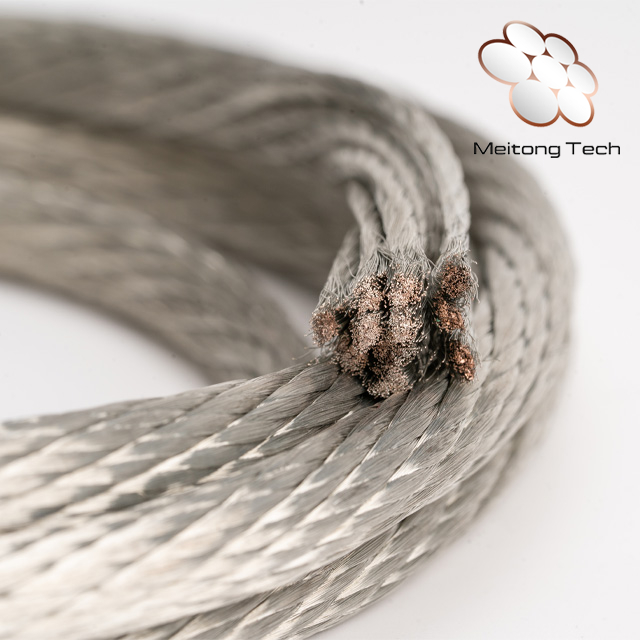

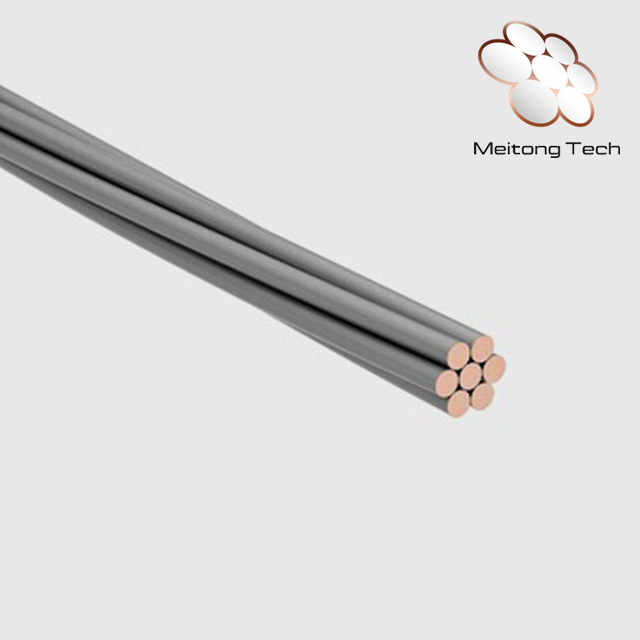

Silver Plated Copper Stranded Wire is a high - performance electrical conductor. Its silver - plated copper structure combines the excellent conductivity of copper with the enhanced corrosion resistance and high - frequency performance of silver plating. It is designed to meet the stringent requirements of various advanced applications.
Robotics Flexible Cables:
Enables reliable signal and power transmission in the constantly moving and flexing environments of robotic systems, ensuring stable operation of robotic arms and control circuits.
Military&Medical Equipment:
In military, it supports secure and high - performance data and power transfer in communication devices, radars, etc. In medical, it meets the precision and reliability needs of equipment like diagnostic machines and surgical robots, where signal integrity is crucial.
Automotive Wiring Harness:
Facilitates efficient power distribution and signal transmission in modern vehicles, contributing to the proper functioning of advanced automotive electronics, from infotainment systems to safety - related sensors.
AI High - Frequency Data Transmission:
Ideal for high - speed, high - frequency data transfer in AI infrastructure, such as data centers and supercomputing facilities, minimizing signal loss and ensuring fast and accurate data communication
Sensor Wire Technology
| Silver Plated Copper Wire - Stranded | |||
| Project | Diameter(mm) | ||
| 0.05≤d≤0.09 | 0.09<d≤0.25 | 0.25<d≤0.5 | |
| tolerance(mm) | ±0.003 | ±0.004 | ±0.005 |
| electrical resistivity (Ωmm²/m) | ≤0.01851 | ≤0.01802 | ≤0.0177 |
| Elongation（％） | ≥6 | ≥12 | ≥15 |
| number wire | 7-100 | ||
| lay direction | S OR Z | ||
| Resistance(mm) | 2.0—100mm | ||
| Tensile Strength(Mpa) | ≥196 | ||
| plating(um) | 0.3-2.0um | ||
| appearance | No scratches, oil, copper exposure, oxidation and other abnormalities | ||
| Package | DIN200DIN300DIN400 rubber disc, 400 type steel disc, DIN500 steel disc, etc | ||
| remark | Can be changed according to customer requirements | ||
• Ultra-High Conductivity – Suitable for RF/microwave and aerospace applications
• Thermal Stability – Reliable performance up to 200°C or higher
• Corrosion Resistance – Silver plating prevents degradation in chemically aggressive environments
• Low Contact Resistance – Ideal for precision electronic components and high-sensitivity sensors
• Long-Term Stability – Maintains performance in mission-critical applications
Custom-Solutions Available
Our engineering team offers full OEM/ODM support, including:
• Customized plating thickness
• Special strand constructions
• Specific resistance and tensile targets
• Insulation & shielding options
Meitong Tech is a professional silver plated copper wire manufacturer specializing in bimetallic conductors, ultra-fine alloy wires, and customized conductive solutions. With advanced wire drawing, coating, stranding, and testing capabilities, Meitong Tech provides silver plated copper wire solutions for aerospace, automotive electronics, robotics, medical equipment, high-frequency transmission, and precision electronic applications.
A: Silver plated copper wire is a high-performance composite conductor consisting of a copper core covered with a silver coating layer. It combines the excellent electrical conductivity and mechanical strength of copper with the superior surface properties of silver.
The copper core provides good conductivity, flexibility, and cost efficiency, while the silver coating improves:
Electrical conductivity
Surface stability
Corrosion resistance
Solderability
Thermal performance
Contact reliability
Silver plated copper wire is widely used in applications requiring high electrical performance, stable signal transmission, and long-term reliability, including precision electronics, automotive electronics, aerospace systems, robotics, medical equipment, and high-frequency transmission applications.
Meitong Tech specializes in bimetallic conductors and ultra-fine alloy wires, providing customized silver plated copper wire solutions for demanding industrial applications.
A: Silver plated copper wire provides enhanced performance compared with traditional bare copper wire.
The main advantages include:
Silver has excellent electrical conductivity. The silver layer improves the conductor surface performance, especially in high-frequency signal applications where current distribution is concentrated near the conductor surface.
The silver coating helps protect the copper core from environmental oxidation and improves long-term electrical stability.
The silver surface provides excellent contact characteristics, making silver plated copper wire suitable for connectors, precision electronic components, and signal transmission systems.
The silver coating provides a solder-friendly surface, supporting efficient electronic assembly processes.
Silver plated copper wire maintains stable performance under demanding temperature conditions.
According to Meitong Tech's product specifications, silver plated copper wire features:
Ultra-high conductivity
Thermal stability
Corrosion resistance
Low contact resistance
Long-term stability
The product can be supplied according to ASTM B961-13 reference requirements.
A: Silver plated copper wire and silver copper alloy wire are both high-performance conductive materials, but their structures are different.
Item | Silver Plated Copper Wire | Silver Copper Alloy Wire |
Structure | Copper core + silver surface coating | Copper and silver combined into alloy material |
Conductivity | Excellent | Excellent |
Surface performance | Silver layer provides superior contact properties | Uniform alloy structure |
Main advantage | High conductivity with economical copper core | Balanced electrical, mechanical, and thermal performance |
Typical use | Electronics, cables, connectors, signal systems | High-performance alloy applications |
Meitong Tech provides both silver plated copper wire and silver-copper alloy wire solutions according to different application requirements. The company’s alloy wire portfolio includes silver-copper alloy wire with Ag contents such as 0.6%, 1%, 2%, and 4%.
A: Meitong Tech provides customized silver plated copper wire solutions covering different diameter ranges and application requirements.
Typical specifications include:
·
Single wire diameter:
0.01 mm – 2.0 mm
Stranded wire:
7 – 20,000 wires
Silver coating thickness:
0.1 μm – 10 μm
Customized specifications are available depending on:
Wire diameter
Silver coating thickness
Mechanical requirements
Electrical resistance requirements
Stranding structure
Application environment
A: Yes. Ultra-fine wire manufacturing is one of Meitong Tech’s core technical capabilities.
The company focuses on:
Bimetallic conductors
Ultra-fine alloy wires
Precision electronic wires
Customized conductive materials
Meitong Tech operates multiple production bases with approximately 12,000 square meters of total production area and provides full-chain capabilities from material development to mass production.
The manufacturing process includes:
Precision wire drawing
Stranding
Surface coating
Performance testing
The company can control ultra-fine wire dimensions from approximately 0.025 mm to 8.00 mm according to different product requirements.
A: Silver plated copper wire is widely used in industries where conductivity, reliability, and miniaturization are important.
Silver plated copper wire can be used in:
Aircraft electronic systems
Communication modules
Satellite communication equipment
Aviation instruments
Military drone systems
The advantages include:
High conductivity
Corrosion resistance
Electromagnetic shielding capability
Stable signal transmission
Meitong Tech has developed conductive solutions for aerospace and military-related applications.
Silver plated copper wire can support:
Battery connection systems
Motor control systems
Charging systems
Automotive electronic components
The advantages include:
Good conductivity
Mechanical reliability
Corrosion resistance
Low electromagnetic interference
Meitong Tech has supplied automotive-related wire solutions and has been selected into the supplier list for wiring projects of Toyota Motor Corporation through cooperation with KBE Group.
Silver plated copper wire can be applied in:
Robot flexible cables
Precision motion systems
Sensor cables
Industrial automation equipment
Advantages include:
Excellent electrical performance
Flexibility
Stable signal transmission
Long service life
Meitong Tech provides conductive wire solutions for robotics manufacturing and intelligent equipment applications.
Silver plated copper wire is suitable for precision medical electronic systems requiring:
Stable electrical transmission
Corrosion resistance
Reliability
Meitong Tech serves medical equipment-related applications as part of its precision conductor solutions.
A: Silver plated copper wire is commonly selected for high-frequency applications because electrical current tends to flow near the surface of conductors at high frequencies.
The silver coating improves:
Surface conductivit
Signal stability
Contact performance
Transmission reliability
Typical applications include:
High-frequency cables
Communication systems
Precision electronic equipment
Signal transmission components
Meitong Tech specializes in conductive materials for high-frequency transmission applications.
A: Meitong Tech is a professional manufacturer specializing in alloy materials and cable stranded wire solutions.
Founded in 2016, Meitong Tech is headquartered in Huzhou City, Zhejiang Province, with three subsidiaries:
Zhejiang Meitong、Jiangsu Meitong、Jishui Meitong
We have approximately 12,000 square meters of production facilities and serves customers in precision electronics, automotive wiring harnesses, medical equipment, military defense, aerospace, robotics, AI-related industries, and photovoltaic applications.
Meitong Tech provides customers with:
Specialized capability in:
Bimetallic conductors
Alloy wires
Ultra-fine wires
Including:
Wire drawing
Stranding
Coating
Mass production
Including:
Material formulation optimization
Performance testing
Customized development
A: Yes. Customized silver plated copper wire manufacturing is one of Meitong Tech’s advantages.
Customization options include:
Wire diameter
Silver coating thickness
Single wire or stranded structure
Mechanical performanc
Electrical performance
Packaging requirements
Meitong Tech works with customers to develop optimized conductor solutions based on application requirements.
A: Quality control is integrated throughout the entire manufacturing process.
Meitong Tech controls:
High-purity metals including copper, aluminum, and alloy materials are carefully selected.
Including:
Wire drawing control
Coating thickness control
Dimensional accuracy control
Professional testing equipment is used to evaluate:
Material properties
Electrical performance
Mechanical characteristics
Product consistency
The company has established a closed-loop system of:
R&D → Testing → Mass Production
and collaborates with universities and research institutions including Jiangxi University of Science and Technology and the Chinese Academy of Sciences.
A: Meitong Tech products are developed according to international industry requirements.
Relevant standards mentioned in the product portfolio include:
ASTM B961-13 for silver plated copper wire reference
ASTM standards
IEC-related requirements
The company also maintains quality management certifications including ISO 9001 and IATF 16949-related automotive quality systems.
A: To receive a customized quotation from Meitong Tech, please provide:
Required wire diameter
Silver coating thickness
Wire structure (single wire or stranded wire)
Application field
Required quantity
Technical specifications or drawings
Our engineering team can recommend the most suitable silver plated copper wire solution based on your application requirements.
