Description

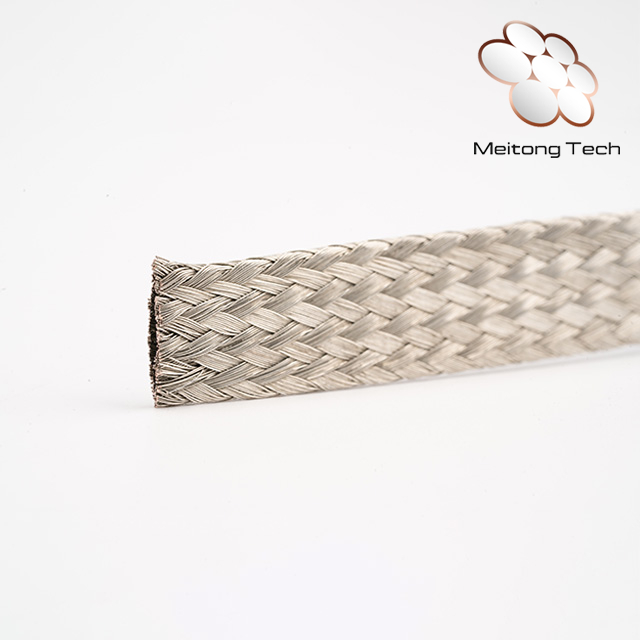

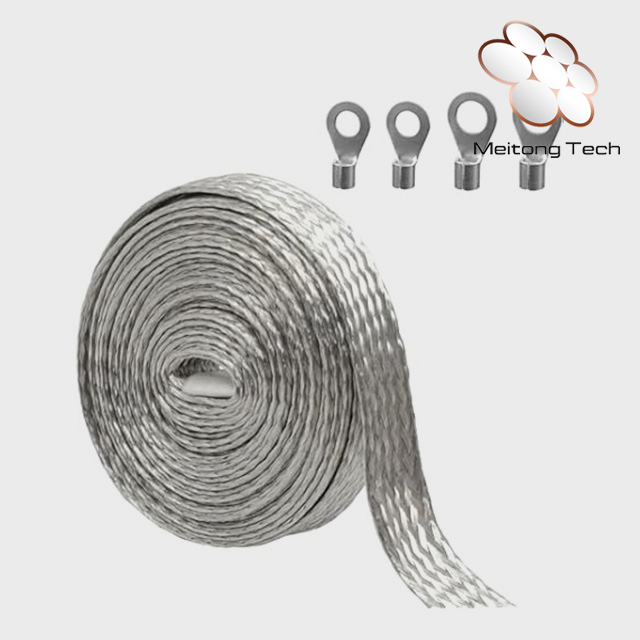

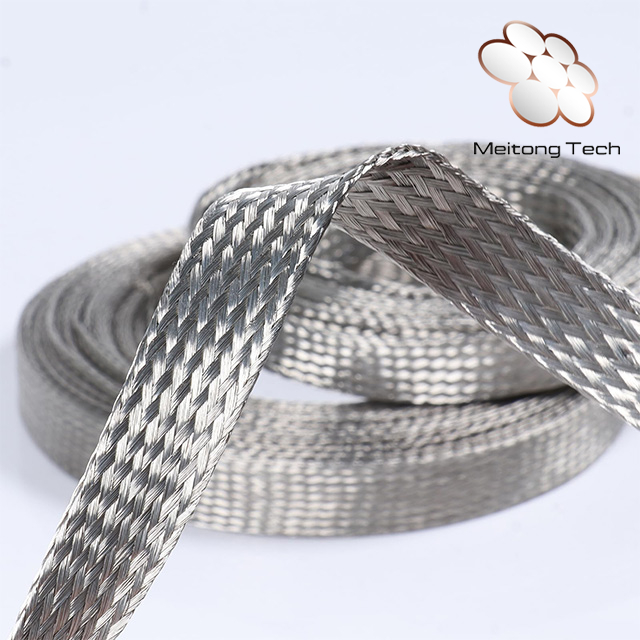

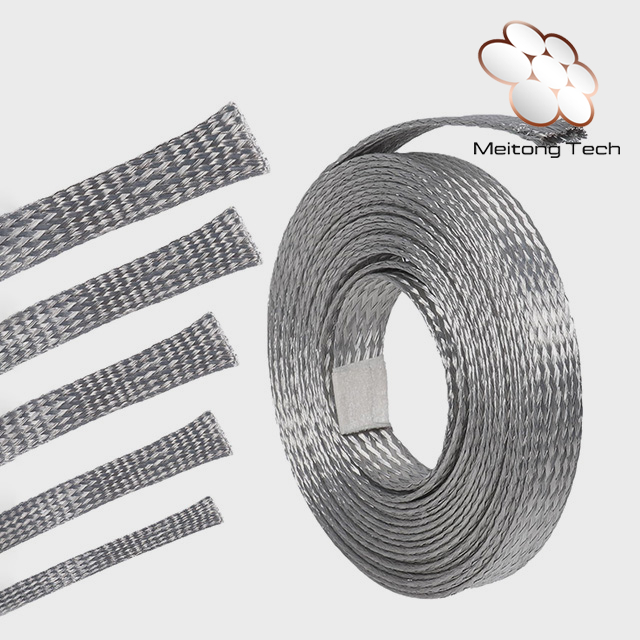

Flexible braided conductor made from multiple strands of tinned copper wire for superior conductivity and shielding.
Characteristics & Advantages
• Excellent Flexibility – Ideal for dynamic and vibration-prone environments
• High Conductivity – Maintains low resistance in power and grounding systems
• Corrosion Resistance – Tin coating enhances durability
• EMI Shielding – Effective in reducing electromagnetic interference
• Easy Termination – Compatible with soldering and crimping
Applications

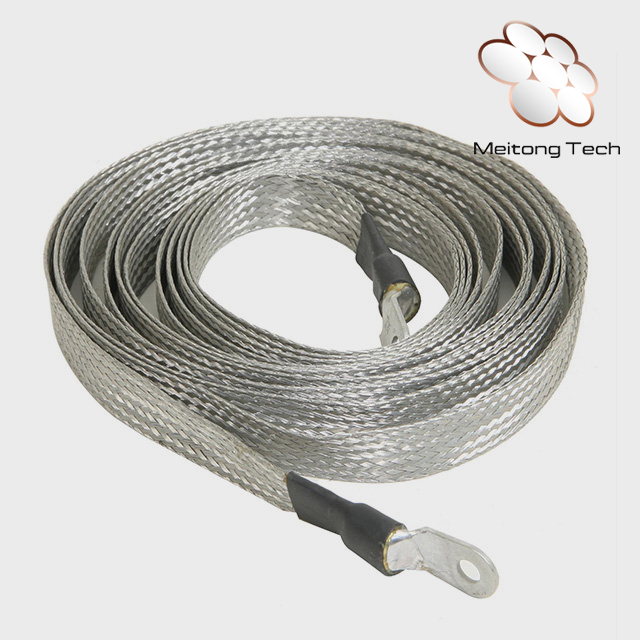

Grounding straps, EMI shielding, power distribution, and cable shielding in automotive and industrial equipment
Certifications & Compliance
ASTM B496
Custom-Solutions Available
Our engineering team offers full OEM/ODM support, including:
• Customized plating thickness
• Special strand constructions
• Specific resistance and tensile targets
• Insulation & shielding options

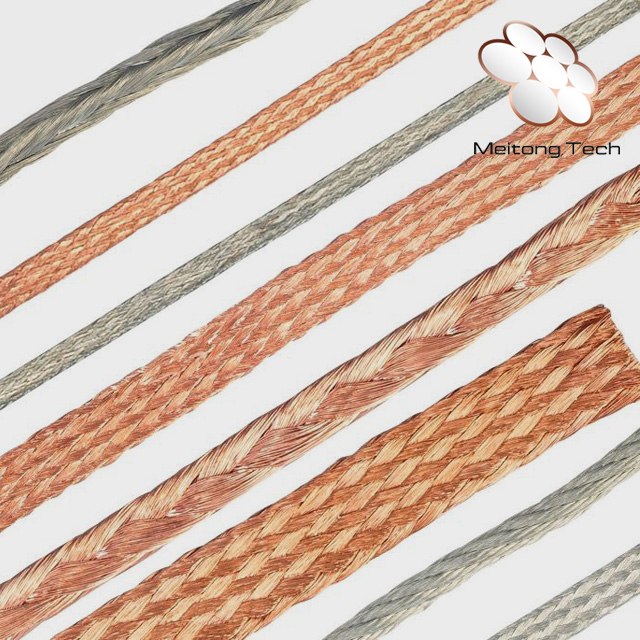

Flat copper braided wire is used for electrical equipment, electricity equipment, elecronic railway net electricity, electricla switches, industrial furnace, batteries and other soft connecting wire.
It's made by high purity cathode copper rod , the tinned type is made by electrolytic or electric tin plating process, which has high corrosion resistance.
Copper braided wire's products standards: GB6313
Copper braided wire's products type:TZ-20/TZX-20
Copper braided wire's products type:TZ-15/TZX-15
Copper braided wire's products type:TZ-10/TZX-10
1. TZ-20/TZX-20 type copper braided wire structure is presented in Table 1
2. TZ-15/TZX-15 type copper braided wire structure is presented in Table 2
3. TZ-10/TZX-10 type copper braided wire structure is presented in Table 3
Product Parameters
| GB6313.92 TZ-20 & TZX-20 Table one | |||||||
| Section mm2 | Structure: Number of wires * qty /diameter of a single wire | Size mm | 20℃ direct current resistance (Ω/km) no more than | Calculating weight kg/km | |||
| Standard | Calculating | The Max width | Thick ness for reference | TZ-20 | TZX-20 | ||
| 16 | 16.59 | 24*22*1/0.20 | 16 | 3.0 | 1.30 | 1.36 | 166 |
| 25 | 24.88 | 24*33*1/0.20 | 18 | 3.5 | 0.87 | 0.91 | 249 |
| 35 | 33.18 | 24*44*1/0.20 | 20 | 4.0 | 0.65 | 0.68 | 331 |
| 50 | 49.77 | 24*33*2/0.20 | 22 | 5.0 | 0.43 | 0.45 | 498 |
| 70 | 66.36 | 24*44*2/0.20 | 24 | 6.5 | 0.32 | 0.33 | 664 |
| 95 | 90.49 | 24*40*3/0.20 | 20 | - | 0.24 | 0.25 | 905 |
| 120 | 120.65 | 24*40*4/0.20 | 22 | - | 0.18 | 0.19 | 1207 |
| 150 | 150.82 | 24*40*5/0.20 | 24 | - | 0.14 | 0.15 | 1508 |
| 185 | 180.98 | 24*40*6/0.20 | 26 | - | 0.12 | 0.13 | 1810 |
| 240 | 241.31 | 24*40*8/0.20 | 30 | - | 0.089 | 0.093 | 2413 |
| 300 | 301.63 | 24*40*10/0.20 | 35 | - | 0.071 | 0.075 | 3016 |
| 400 | 401.17 | 24*40*10/0.20 +36*44*2/0.20 | 40 | - | 0.054 | 0.056 | 4004 |
| 500 | 500.65 | 34*40*10/0.20 +48*44*3/0.20 | 45 | - | 0.043 | 0.045 | 5007 |
| 630 | 633.43 | 24*40*10/0.20 +48*44*5/0.20 | 50 | - | 0.034 | 0.036 | 6334 |
| 800 | 766.15 | 24*40*10*0.20 +48*44*7/0.20 | 55 | - | 0.028 | 0.029 | 7661 |
| GB6313.92 TZ-15 & TZX-15 Table Two | |||||||
| Section mm2 | Structure: Number of wires * qty /diameter of a single wire | Size mm | 20℃ direct current resistance (Ω/km) no more than | Calculating weight kg/km | |||
| Standard | Calculating | The Max width | Thick ness for reference | TZ-20 | TZX-20 | ||
| 4 | 3.39 | 48*4*1/0.15 | 9 | 1.0 | 6.36 | 6.65 | 34 |
| 4 | 3.82 | 36*6*1/0.15 | 9 | 1.5 | 5.64 | 5.89 | 38 |
| 6 | 5.09 | 48*6*1/0.15 | 12 | 1.2 | 4.23 | 4.42 | 51 |
| 10 | 10.18 | 48*12*1/0.15 | 20 | 1.4 | 2.12 | 2.22 | 102 |
| 10 | 10.18 | 36*16*1/0.15 | 16 | 2.0 | 2.12 | 2.22 | 102 |
| 16 | 16.96 | 48*20*1/0.15 | 22 | 2.0 | 1.27 | 1.33 | 170 |
| 16 | 16.54 | 36*26*1/0.15 | 20 | 2.5 | 1.30 | 1.35 | 166 |
| 20 | 20.36 | 36*32*1/0.15 | 22 | 3.0 | 1.06 | 1.10 | 204 |
| 25 | 25.44 | 48*30*1/0.15 | 22 | 3.0 | 0.85 | 0.89 | 254 |
| 25 | 25.44 | 36*40*1/0.15 | 26 | 3.0 | 0.85 | 0.89 | 254 |
| 35 | 33.93 | 48*20*2/0.15 | 26 | 3.2 | 0.64 | 0.67 | 340 |
| 35 | 35.62 | 36*56*1/0.15 | 32 | 3.0 | 0.61 | 0.64 | 357 |
| 50 | 50.89 | 48*20*3/0.15 | 28 | 4.8 | 0.42 | 0.44 | 510 |
| 50 | 50.89 | 36*40*2/0.15 | 28 | 5.0 | 0.43 | 0.44 | 510 |
| 70 | 71.25 | 48*28*3/0.15 | 36 | 5.0 | 0.30 | 0.31 | 714 |
| 70 | 71.25 | 36*56*2/0.15 | 35 | 6.0 | 0.30 | 0.31 | 714 |
| 75 | 76.33 | 36*40*3/0.15 | 30 | 7.0 | 0.28 | 0.29 | 765 |
| 95 | 95.00 | 40*28*4/0.15 | 40 | 6.0 | 0.23 | 0.24 | 950 |
| 120 | 118.74 | 48*28*5/0.15 | 42 | 7.0 | 0.18 | 0.19 | 1187 |
| GB6313.92 TZ-10 & TZX-10 Table Three | |||||||
| Section mm2 | Structure: Number of wires * qty /diameter of a single wire | Size mm | 20℃ direct current resistance (Ω/km) no more than | Calculating weight kg/km | |||
| Standard | Calculating | The Max width | Thick ness for reference | TZ-20 | TZX-20 | ||
| 4 | 3.96 | 36*14*1/0.10 | 8 | 1.0 | 5.44 | 5.69 | 40 |
| 6 | 5.93 | 36*21*1/0.10 | 10 | 1.2 | 3.63 | 3.79 | 59 |
| 10 | 10.17 | 36*36*1/0.10 | 14 | 2.0 | 2.12 | 2.22 | 120 |
| 16 | 15.83 | 36*56*1/0.10 | 16 | 2.5 | 1.36 | 1.42 | 158 |
| 25 | 23.74 | 36*42*2/0.10 | 18 | 3.5 | 0.91 | 0.95 | 237 |
| 35 | 35.61 | 36*42*3/0.10 | 20 | 4.5 | 0.60 | 0.63 | 156 |
