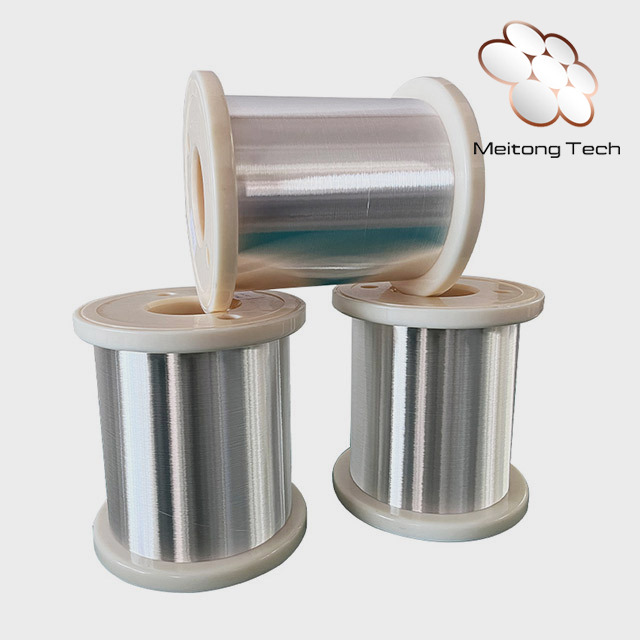

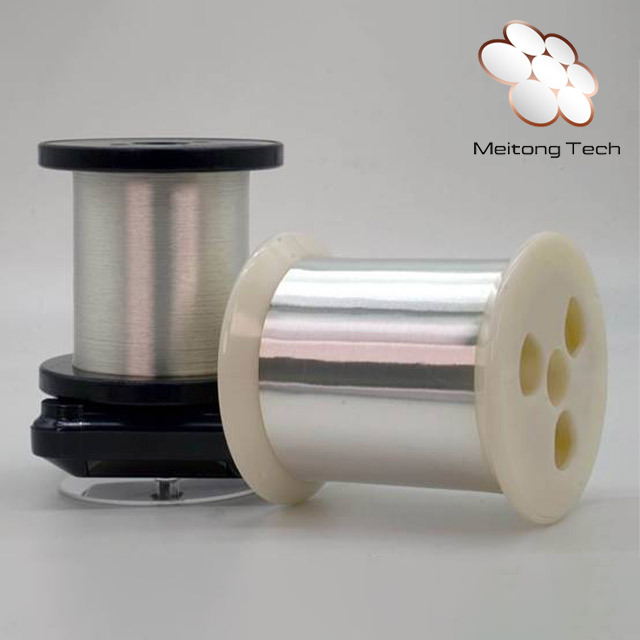

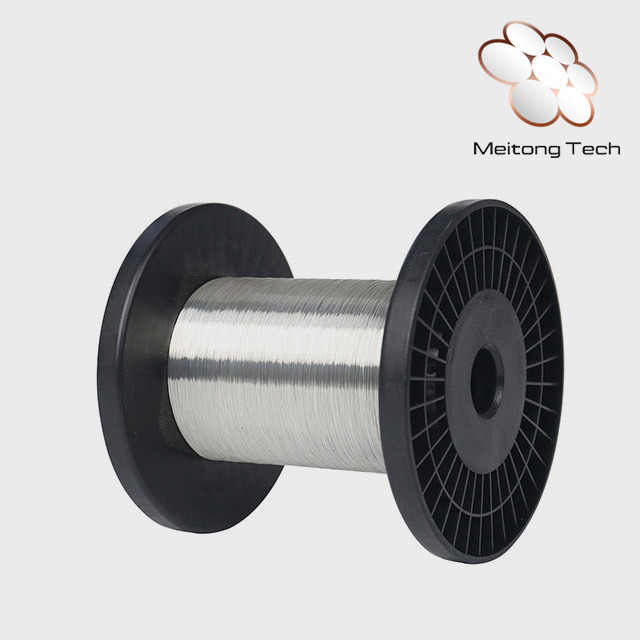

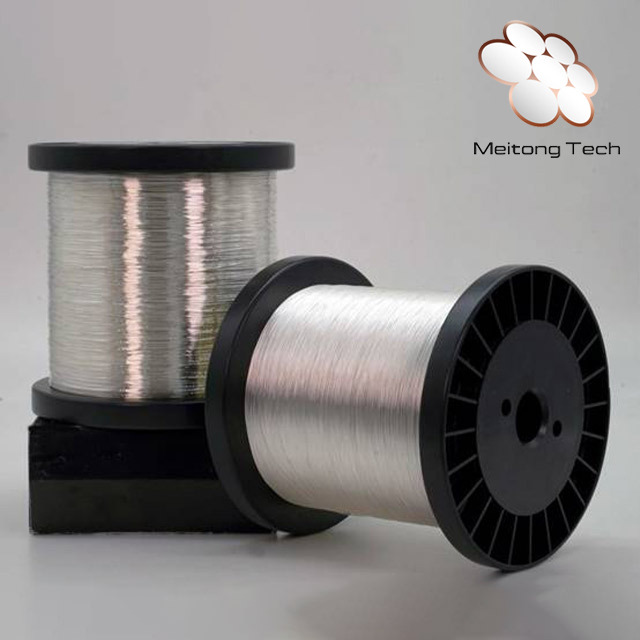

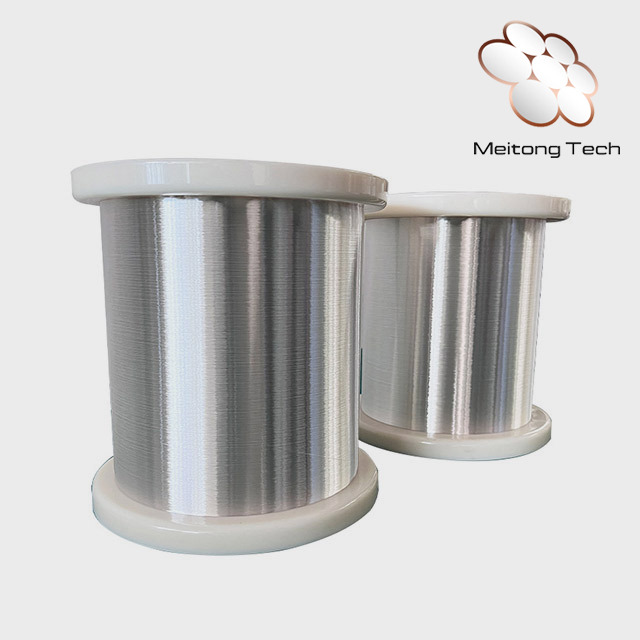

| Silver Plated CuBe Wire | ||||||||||||||||
| Chemical Composition | ||||||||||||||||
| Composition(%) | Element | Be | Ni | 4 Fe | Al | 4 Bi | 4 Si | Impurity | Composition | Cu | ||||||
| Standard Value | 1.8-2.1 | \ | <0.15 | <0.15 | <0.15 | <0.005 | 0.02 | OK | Remainder | |||||||
| Mechanical properties and inspection items | ||||||||||||||||
Sampling Method | (Mpa) Tensile Strength | (Mpa) Yield Strength | (%) Elongation | Hardness (HV) | (ISCAS) | (MM) Grain Size | Non-destructive Test | Inspection of Surf Qual.and Dim | ||||||||
| 926 | 853 | 8月15日 | 250-280 | 58-75 | 8.6 | OK | OK | |||||||||
