When it comes to electrical wiring for high-performance applications, the decision between bare copper, tin-plated copper, and silver-plated copper stranded wire is more than just about conductivity. It’s a matter of longevity, reliability, corrosion resistance, and environmental compatibility. Silver plating, while seemingly a premium option, offers numerous performance advantages that often justify its higher initial cost — especially in mission-critical environments.
In this article, we’ll explore why silver-plated copper stranded wire stands out over its counterparts and how it meets demanding application requirements in aerospace, military, medical, and high-frequency electronics.

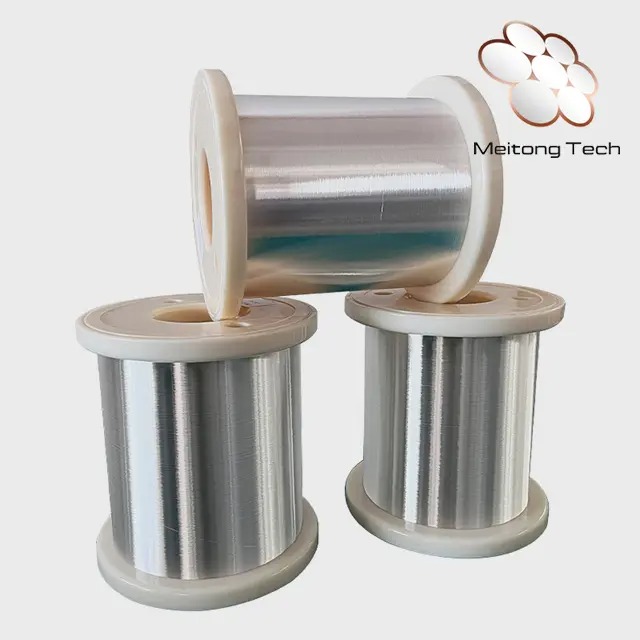

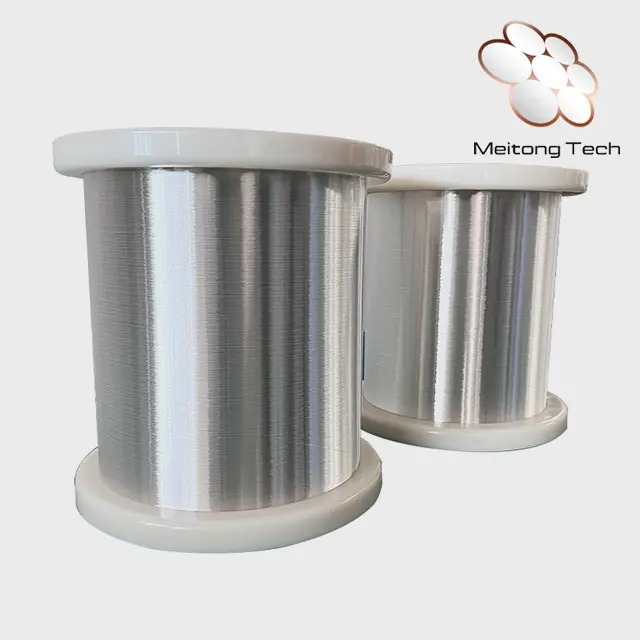

Silver-plated copper stranded wire is a specialized type of electrical conductor made by applying a fine layer of silver to the surface of stranded copper wires. The copper provides excellent electrical conductivity, while the silver layer enhances performance in terms of oxidation resistance, signal integrity, and temperature resilience.
Unlike bare copper, which can oxidize quickly, or tin-plated copper, which may not perform well at high frequencies or extreme temperatures, silver-plated copper offers a superior blend of conductivity, corrosion resistance, and thermal stability.
Silver-plated copper stranded wires are typically composed of:
Core Material: High-purity stranded copper for flexibility and base conductivity.
Plating: A uniform silver coating, typically between 20-100 microinches thick.
Stranding: Multiple copper strands twisted together to provide mechanical strength and reduce skin effect at high frequencies.
The combination of silver plating with flexible stranded copper offers both mechanical durability and electrical performance, especially under harsh environmental conditions.
Silver is the most electrically conductive metal, even more so than copper. By plating copper with silver, engineers optimize current flow — particularly in high-frequency applications where the skin effect causes current to travel on the conductor's surface. Silver's superior conductivity ensures lower resistance and minimal signal loss, especially in RF and microwave circuits.
Comparison Table: Electrical Conductivity
| Material | Conductivity (% IACS) | Relative Skin Depth Efficiency |
|---|---|---|
| Bare Copper | 100% | Good |
| Tin-Plated Copper | ~85% | Moderate |
| Silver-Plated Copper | 105% | Excellent |
This edge is critical in aerospace systems, medical devices, and satellite communications, where data integrity and minimal interference are non-negotiable.
While copper is highly conductive, it oxidizes rapidly when exposed to air. This oxidation forms a non-conductive layer that can interfere with signal transmission and increase resistance. Tin-plating provides temporary corrosion resistance, but tin can degrade over time, especially in high-temperature or humid environments.
Silver, however, forms silver oxide, which remains electrically conductive — making it ideal for applications exposed to atmospheric oxygen or corrosive environments. This is especially valuable in:
Aviation harnesses
Marine electronics
Space-grade cabling
The enhanced oxidation resilience ensures that connections remain stable and reliable throughout the product’s life cycle.
Another significant advantage of silver-plated copper stranded wire is its thermal endurance. Silver can withstand much higher temperatures compared to tin, making it suitable for systems operating in extreme thermal environments — such as jet engines, industrial control panels, or military field communications.
| Material | Max Temperature Rating |
|---|---|
| Bare Copper | ~105°C |
| Tin-Plated Copper | ~150°C |
| Silver-Plated Copper | ~200°C+ |
At elevated temperatures, tin may soften or degrade, while silver retains its conductive properties without melting or significantly deforming.
Silver-plated copper stranded wires are not just electrically superior — they are also mechanically advantageous. The stranded construction allows for excellent flexibility, reducing the risk of cracking or fatigue over repeated bends. This is especially critical in applications involving:
Robotic arms
Avionics cabling
Medical imaging equipment
Portable military electronics
Even in vibrating or mobile environments, silver-plated stranded wires maintain structural integrity, ensuring stable current delivery and long-lasting performance. This contrasts with solid bare copper wires, which are more prone to breaking under mechanical stress.
Furthermore, the silver coating acts as a lubricant, minimizing friction during installation and allowing the wire to move freely within insulation or conduit systems.
Many engineers and procurement specialists hesitate to choose silver-plated wire due to its higher upfront cost. However, a long-term cost-benefit perspective tells a different story.
| Feature | Tin-Plated Copper | Bare Copper | Silver-Plated Copper |
|---|---|---|---|
| Initial Cost | Low | Moderate | High |
| Maintenance Frequency | Moderate | High | Low |
| Replacement Rate | High | Moderate | Very Low |
| Overall Lifecycle Cost | High | Moderate | Low |
In high-value systems, the cost of failure or downtime far outweighs the cost of superior materials. Silver-plated copper wire is often used where precision, reliability, and safety outweigh budget limitations.
Thanks to its impressive blend of properties, silver-plated copper stranded wire is widely used in specialized industries. These include:
From navigation systems to cockpit controls, aerospace-grade wiring requires unmatched reliability. Silver’s thermal tolerance and signal clarity make it the go-to choice in these critical areas.
In devices such as MRI machines, surgical tools, or life-support monitors, silver-plated wires help maintain signal clarity and sterilization integrity, thanks to silver’s antimicrobial and oxidation-resistant nature.
RF circuits, antennas, and microwave systems benefit from silver-plated wiring’s ability to minimize signal loss at ultra-high frequencies.
A: Absolutely. Though the upfront cost is higher, silver-plated wire offers long-term savings by minimizing maintenance, enhancing performance, and reducing downtime in critical systems.
A: Silver plating, when applied correctly, can extend the functional life of a wire well beyond traditional tin or bare copper alternatives — often for decades under proper conditions.
A: Yes, but the oxidation (silver oxide) remains conductive, unlike copper oxide, which is an insulator. This is why silver-plated wire continues to perform even when exposed to air.
A: Yes. Silver-plated wire solders easily with standard lead-free or leaded solders. It often requires lower soldering temperatures and results in more stable, clean joints.
A: Yes. Silver’s corrosion resistance makes it ideal for harsh environments such as marine, oil rigs, or outdoor installations where humidity, salt, or chemical exposure are concerns.
When high performance, environmental durability, and signal fidelity are at stake, silver-plated copper stranded wire becomes the clear winner. While alternatives like tin-plated or bare copper may suffice for general applications, they fall short in high-stress environments where every microvolt and every second of uptime matters.
From aerospace and defense to next-generation electronics, the case for silver is strong and well-substantiated. By choosing silver-plated wire, you’re not just purchasing a product — you’re investing in longevity, reliability, and peace of mind.
