Will Frequent Bending Degrade Silver Plated Copper Stranded Wire?

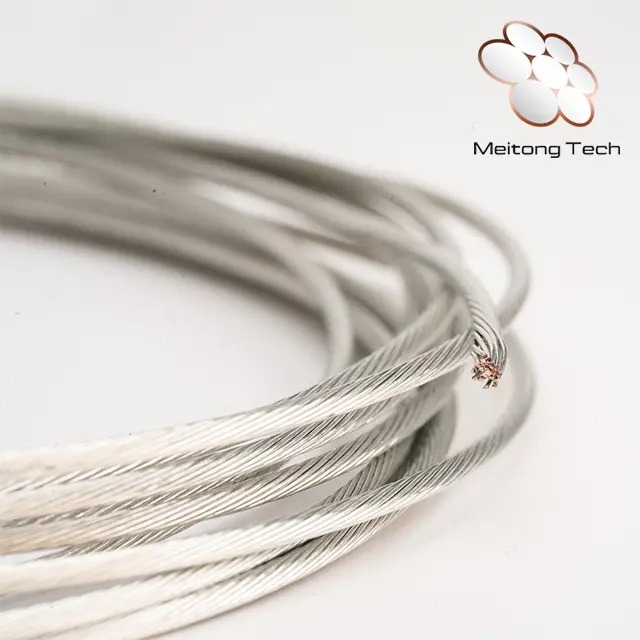

Silver Plated Copper Stranded Wire is a specialty conductor that combines the high conductivity of copper with the excellent corrosion resistance and surface conductivity of silver. This wire is composed of multiple thin copper strands bundled together, each coated with a fine layer of silver. The result is a flexible, high-performance electrical conductor widely used in aerospace, military, medical, and high-frequency applications.

The silver plating significantly enhances the wire’s performance by increasing its surface conductivity, which is particularly valuable in applications involving radio frequency (RF) or high-speed signal transmission. Moreover, silver’s natural resistance to oxidation and corrosion ensures a longer service life compared to bare copper or tin-plated alternatives.

Stranding the wire improves its mechanical flexibility, making it more suitable for dynamic environments where wires must be bent, twisted, or routed through tight spaces. However, a common concern among engineers and technicians is whether frequent bending will degrade silver plated copper stranded wire, potentially affecting performance and safety. Let's explore this question in depth.

Does Frequent Bending Damage the Wire Structure?

Mechanical Stress and Fatigue in Stranded Conductors

When any metal wire is subjected to repeated bending, it undergoes mechanical stress. Over time, this stress can lead to metal fatigue, a process where the internal structure of the metal weakens, causing cracks or even breakage. In the case of silver plated copper stranded wire, the concern is not only about the copper core but also the silver plating that coats each strand.

However, stranded wires are inherently more resistant to mechanical fatigue than solid wires. This is because the individual strands can move slightly relative to one another, distributing stress more evenly. Silver plated copper stranded wire benefits from this characteristic and is thus better suited for applications involving motion or vibration, such as robotic arms, mobile medical devices, and avionics systems.

That said, excessive or sharp bending, especially below the wire’s specified minimum bend radius, can still degrade the structure over time. The silver plating may develop micro-cracks or flake off, exposing the copper underneath. Once exposed, the copper is more susceptible to oxidation, particularly in humid or chemically active environments.

How Silver Plating Reacts to Repeated Flexing

Adhesion and Micro-Cracking Under Duress

The silver coating on copper strands is typically electroplated, forming a strong metallurgical bond. This bond is crucial because poor adhesion could lead to delamination—where the plating peels off when the wire is flexed or twisted.

In a well-manufactured silver plated copper stranded wire, the plating is sufficiently ductile to accommodate standard levels of flexing without cracking. However, with repeated and aggressive bending, particularly in small-radius loops or at fixed hinge points, micro-cracks may form in the silver layer. These micro-cracks might not immediately affect conductivity, but they can become sites for moisture intrusion, corrosion, or thermal hotspots.

Moreover, any breach in the plating exposes the copper, which can tarnish or corrode over time. While this does not always lead to immediate failure, it compromises long-term reliability—especially in environments where consistent high conductivity is critical.

Below is a table summarizing the effects of various bending frequencies on silver plated copper stranded wire:

Bending Frequency	Typical Result	Suggested Action
Occasional bends	No significant damage	Safe under proper bend radius
Daily light movement	Minor stress accumulation over time	Use strain relief or flexible routing
Repeated sharp bending	Risk of micro-cracking and plating delamination	Use larger bend radius; avoid sharp angles
Continuous flexing	Accelerated wear, copper exposure, potential breakage	Consider high-flex rated wire alternatives

Minimum Bend Radius—Why It Matters

Every wire type has a minimum bend radius, defined as the smallest radius one can bend the wire without compromising its integrity. For silver plated copper stranded wire, this minimum value is determined by several factors:

• Strand count and diameter

• Overall wire gauge (AWG)

• Silver plating thickness

• Insulation material (if any)

Exceeding this limit by forcing a tighter bend increases stress concentration on the outer strands and on the silver plating. This leads to localized damage, which may not be visible externally but can cause intermittent signal failures or heat buildup due to increased resistance.

Manufacturers often provide a bend radius recommendation, typically expressed as a multiple of the cable’s outer diameter. For example, a 2mm diameter wire may have a minimum bend radius of 10x, or 20mm. Adhering to these guidelines is crucial to maintain the electrical and mechanical performance of the wire over its lifetime.

Environmental Factors That Exacerbate Bending Effects

Temperature, Humidity, and Vibration

Even if bending remains within specified limits, external environmental conditions can accelerate degradation. High temperatures reduce the metal’s elasticity and increase the likelihood of micro-cracks forming in the silver layer. Humidity and corrosive atmospheres can penetrate micro-cracks, oxidizing the underlying copper and further reducing conductivity.

Vibration, common in automotive or aerospace installations, acts like continuous micro-bending over time. Even if the wire isn't visibly moving, high-frequency vibration subjects it to low-amplitude flexing thousands of times per second. In these cases, specialized high-flex versions of silver plated copper stranded wire with reinforced construction may be necessary.

If your application involves these stressors, consider additional protective measures such as:

• Heat shrink tubing

• Strain relief boots

• Routing in protective conduits

• Use of slack loops to reduce tension

FAQs – Common Questions on Flexibility and Durability

Q1: How many bends can silver plated copper stranded wire handle?

There is no universal number, as it depends on bend radius, frequency, temperature, and wire design. However, high-quality wires can endure thousands of moderate bends without noticeable degradation.

Q2: Is there a way to test wire integrity after repeated bending?

Yes. Technicians can use continuity tests, insulation resistance meters, or microscopic inspection for plating cracks. More advanced methods include X-ray or ultrasonic testing.

Q3: Can silver plated copper wire be used in robotic applications?

Only if it’s designed for high-flex or continuous-flex operations. Otherwise, frequent robotic movement can cause fatigue.

Q4: What happens if the plating wears off?

Exposed copper can oxidize, reducing conductivity and increasing resistance. It may also react with environmental chemicals, especially sulfur compounds.

Q5: Does insulation affect flexibility?

Yes. Softer, more elastic insulation types like PTFE or silicone enhance flexibility. Stiff insulation can negate the benefits of stranding.

Conclusion

Silver plated copper stranded wire is a high-performance conductor offering excellent electrical characteristics and good mechanical flexibility. However, like any component, it has its limits. While occasional or moderate bending within the specified radius does not significantly impact performance, frequent, sharp, or high-stress bending can cause damage over time.

To ensure maximum lifespan and performance:

• Follow manufacturer-recommended bend radius guidelines.

• Avoid tight loops or pinch points.

• Implement strain relief and protective routing.

• Consider environmental factors such as vibration and temperature.

Understanding these parameters helps you make informed decisions when specifying or installing silver plated copper stranded wire. Whether you’re wiring a satellite system, medical device, or industrial controller, balancing flexibility with longevity is key to a safe and reliable installation.
