In today’s evolving world of electrical and electronic applications, the performance and longevity of wiring systems are critical. One product that consistently stands out in demanding environments is silver plated copper stranded wire. While tin-plated and bare copper wires have their place, silver plating brings unique advantages that are too significant to ignore.
This article delves into why silver plating outperforms other common alternatives, how it enhances copper stranded wire, and why industries from aerospace to medical devices are increasingly turning to this premium solution.

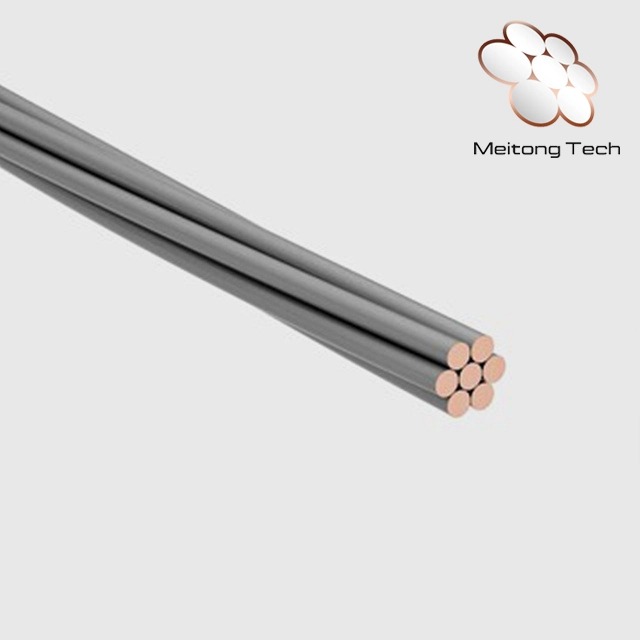

Silver plated copper stranded wire is made by coating multiple fine copper strands with a layer of silver. The copper core provides excellent electrical conductivity and mechanical flexibility, while the silver plating enhances the surface properties—especially in terms of oxidation resistance and high-frequency performance.
Unlike solid wire, stranded wire is composed of many small wires twisted together, which increases flexibility and reduces skin effect in high-frequency applications. When this flexible conductor is silver-plated, the result is a high-performance wire suitable for critical tasks where reliability and efficiency are paramount.
While bare copper and tin-plated copper wires are commonly used due to their cost-effectiveness and wide availability, they have clear limitations—particularly in specialized or extreme environments.
Bare copper wires are prone to oxidation. Over time, exposure to air and moisture causes a layer of copper oxide to form on the surface, which degrades the electrical conductivity and makes soldering more difficult. This oxidation is not just a cosmetic issue—it can significantly impact signal integrity, especially in low-voltage or sensitive applications.
Bare copper is also not ideal for high-frequency signals, where skin effect dominates. In such cases, the surface conductivity becomes critical, and oxidized copper is a poor conductor compared to silver.
Tin plating provides a modest improvement in corrosion resistance and solderability. However, tin has a much lower electrical conductivity than both copper and silver. At high frequencies, tin-plated wire can suffer from signal degradation due to the higher surface resistance. Additionally, tin plating is susceptible to “tin whiskers”—tiny, hair-like metallic growths that can cause electrical shorts in sensitive electronic equipment.
Silver is the most conductive metal known to man. When applied as a thin layer to stranded copper wire, it creates a surface that is both highly conductive and extremely resistant to oxidation. This makes silver plated copper stranded wire the top choice for performance-critical applications.
Silver has a conductivity of 63 × 10⁶ S/m, compared to 58 × 10⁶ S/m for copper and only 9.1 × 10⁶ S/m for tin. This means that a silver-coated wire provides better conductivity than bare copper and far superior performance to tin-coated wire—especially where surface effects dominate, such as in RF and microwave systems.
Silver resists oxidation far better than copper. Even though silver tarnishes in the presence of sulfur, this does not significantly impact its conductivity. This makes silver plated wire ideal for harsh environments where corrosion is a concern, including aerospace, military, and marine applications.
Silver's high melting point and excellent thermal conductivity help it to dissipate heat more effectively than tin. This is especially valuable in high-current or high-temperature applications, where maintaining stable resistance and preventing hotspots is critical.
Thanks to its superior properties, silver plated copper stranded wire is used in a wide variety of industries and applications that demand precision, reliability, and durability.
| Industry | Application |
|---|---|
| Aerospace | Wiring for aircraft and satellites |
| Military | Communication systems, guided weapons, radar systems |
| Medical Equipment | Imaging, diagnostics, and surgical devices |
| High-Frequency Tech | RF/microwave coaxial cables, antennas |
| Automotive EV | Battery management, sensors, charging infrastructure |
In each of these fields, the wire must perform reliably under high temperatures, aggressive chemical exposure, and mechanical stress—all of which silver plated stranded copper handles with excellence.
To address the most common questions surrounding silver plated copper stranded wire, here’s a useful FAQ section for quick reference:
Yes. Silver plating on industrial-grade wire typically ranges from 10 to 100 microinches, which is sufficient for long-term performance in even the harshest environments. The plating is bonded firmly to the copper substrate and resists wear, oxidation, and abrasion.
Silver can tarnish, forming silver sulfide, but this does not significantly affect conductivity. Tarnish is a surface-level phenomenon and does not impede signal flow or electrical function.
In critical applications where signal integrity, reliability, and thermal management matter, the slightly higher cost of silver plating is easily justified by the performance benefits and reduced maintenance needs over time.
Absolutely. Silver plated wire offers excellent solderability, even after long-term storage. It forms strong, stable solder joints without the need for aggressive fluxes.
To summarize the critical reasons to choose silver plated copper stranded wire over tin or bare copper, the following table provides a clear side-by-side comparison:
| Feature | Bare Copper | Tin-Plated Copper | Silver-Plated Copper |
|---|---|---|---|
| Conductivity | Excellent | Moderate | Superior |
| Oxidation Resistance | Poor | Good | Excellent |
| High-Frequency Performance | Poor | Fair | Exceptional |
| Solderability | Moderate | Good | Excellent |
| Thermal Stability | Moderate | Moderate | Excellent |
| Corrosion Resistance | Poor | Moderate | Superior |
As the table clearly shows, silver plating significantly enhances copper wire in every key performance category.
While the initial investment may be higher, the long-term benefits of silver plated copper stranded wire make it the optimal choice when:
Operating in high-temperature environments.
Needing low-loss signal transmission at high frequencies.
Requiring exceptional corrosion resistance for long service life.
Ensuring solderability after prolonged storage or exposure.
Using wires in mission-critical systems (such as aerospace, defense, and medical applications).
Even in less extreme environments, many designers and engineers choose silver plated wire for the peace of mind it offers—especially when system failure is not an option.
Choosing silver plated copper stranded wire is more than a technical decision—it's a strategic investment in system reliability, signal integrity, and operational excellence. In scenarios where precision and durability are paramount, silver plating delivers measurable advantages that bare copper and tin coatings simply can’t match.
By understanding the unique properties and long-term benefits of silver plating, engineers and procurement teams can make more informed choices, reduce maintenance costs, and elevate the performance of their electrical systems.
For your next project, whether it’s powering a satellite, designing a medical imaging system, or optimizing a 5G communication platform—silver plated copper stranded wire could very well be the missing link to maximum performance and durability.
