Ultra fine copper wire, also known as ultra-thin copper wire, plays a crucial role in various high-performance industries. Its small size and exceptional conductivity make it indispensable in applications ranging from electronics to medical devices.
In this article, we’ll explore the properties, applications, and benefits of ultra fine copper wire. You’ll also learn how to select the right gauge for your projects and the challenges to consider.
Ultra fine copper wire typically measures between 30 to 50 AWG (American Wire Gauge), which corresponds to a diameter as small as 0.002 inches (approximately 0.05mm). The small diameter allows for the development of intricate and dense circuits. Its small size is crucial in applications where space is limited, such as microelectronics and high-density wiring systems. This fine gauge wire can be drawn to even smaller sizes for specialized needs, making it incredibly versatile across a wide range of industries.
One of the standout characteristics of ultra fine copper wire is its exceptional electrical conductivity. Copper is one of the best conductors of electricity, second only to silver. This makes it ideal for high-performance applications where minimizing electrical resistance is critical. The high conductivity ensures efficient signal transmission, especially in microelectronics, telecommunications, and other high-frequency applications. Even in very thin gauges, ultra fine copper wire maintains excellent conductivity, which is essential in circuits where energy efficiency and fast data transfer are crucial.
Despite its minuscule diameter, ultra fine copper wire maintains impressive flexibility and mechanical strength. This flexibility makes it ideal for intricate wiring tasks and small, delicate devices where the wire needs to bend or fit into tight spaces without breaking. Additionally, ultra fine copper wire can withstand mechanical stress, making it suitable for environments where durability and reliability are paramount. Its combination of strength and flexibility makes it the material of choice for applications that demand high precision and long-term performance.
Characteristic | Description |
Diameter | Typically between 30 to 50 AWG, allowing for precise and small applications. |
Electrical Conductivity | Offers excellent conductivity for efficient signal transmission. |
Flexibility | Highly flexible, making it suitable for intricate wiring tasks. |
Strength | Maintains impressive mechanical strength despite its small size. |

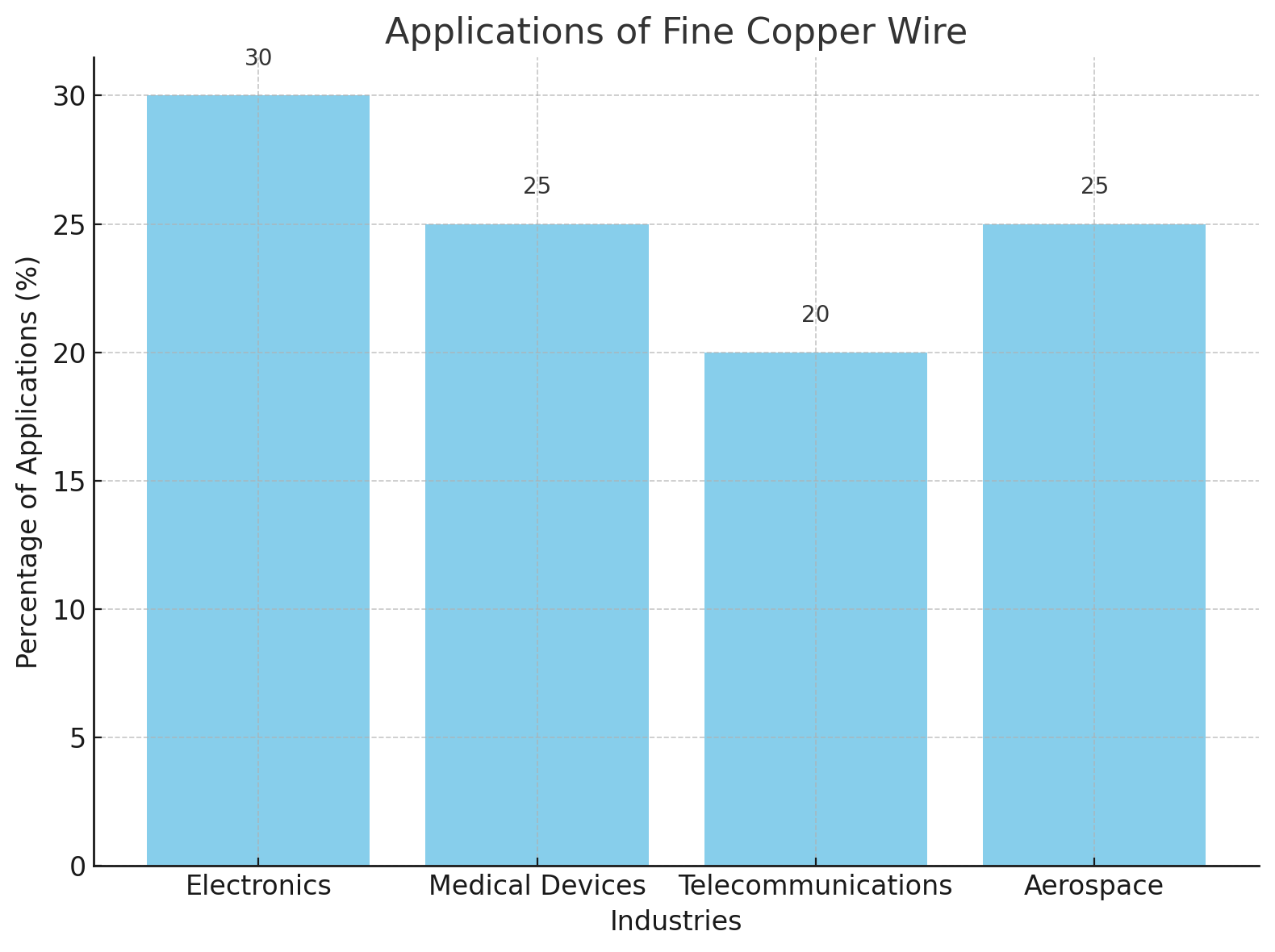

Ultra fine copper wire is extensively used in microelectronics, particularly in the construction of microchips and semiconductor devices. These devices require precise connections, and the small size of ultra fine copper wire makes it ideal for wiring fine circuit paths. For example, ultra fine copper wire is used in the bonding of microchips to semiconductor packaging. Its excellent conductivity and small gauge allow microelectronics to operate at higher speeds while maintaining efficiency.
In the medical field, ultra fine copper wire plays a crucial role in various implantable medical devices, such as pacemakers, neurostimulators, and other life-saving equipment. These devices often require extremely small wiring that needs to be both flexible and durable. Ultra fine copper wire’s ability to conduct electrical signals reliably while fitting into small spaces makes it essential for ensuring the effectiveness and reliability of these critical medical tools. Moreover, its corrosion resistance and flexibility contribute to the longevity and performance of these devices inside the human body.
Ultra fine copper wire is used in telecommunications to manufacture coaxial cables, fiber optics, and other essential interconnects that require efficient and stable data transmission. Due to its small diameter and low resistance, it ensures that signals are transmitted with minimal loss, which is crucial for high-speed communication networks. In addition, ultra fine copper wire is used in the manufacturing of antennas and receivers for telecommunication devices, ensuring high performance even in compact designs.
In the aerospace industry, ultra fine copper wire is used in avionics, satellites, and other aerospace technologies. The aerospace sector requires lightweight and highly reliable components that can withstand extreme conditions. Ultra fine copper wire’s low weight and superior conductivity make it the ideal choice for wiring systems that must function flawlessly in critical situations. Whether used in communication systems, flight controls, or sensors, ultra fine copper wire ensures that aerospace systems operate with maximum efficiency and reliability.
Advantage | Description |
High Efficiency | Small diameter allows for better packing density and improved performance. |
Durability | Resistant to corrosion and able to withstand high temperatures. |
Cost-Effectiveness | Offers high performance in precision applications, justifying its cost. |
One of the most significant advantages of ultra fine copper wire is its ability to enable high packing density in systems. The small diameter of the wire allows more circuits to be packed into smaller spaces, enhancing the overall performance of the device or system. In electronic systems, this translates to faster processing speeds, lower energy consumption, and more compact designs. Ultra fine copper wire’s efficiency helps drive advancements in miniaturization, allowing for smaller and more powerful electronic devices.
Ultra fine copper wire is highly resistant to corrosion, which ensures long-term reliability in various applications. Copper’s natural resistance to oxidation, coupled with its ability to withstand high temperatures, makes it an excellent choice for systems that must operate under demanding environmental conditions. This durability ensures that ultra fine copper wire performs well over extended periods, even in harsh environments, such as those encountered in aerospace or medical devices.
While ultra fine copper wire can be more expensive than thicker wires, its advantages often justify the higher cost. The increased efficiency, reliability, and performance it provides in precision applications often outweigh the initial investment. Moreover, its ability to support miniaturized designs, which reduce material and space requirements, makes it a cost-effective option for many advanced technologies.
Ultra fine copper wire is more fragile than thicker wires, primarily due to its small diameter. This makes it more susceptible to breakage during installation or handling. Special care must be taken to avoid damage to the wire, especially during the manufacturing process and installation in devices. Precise handling and specialized equipment are often required to ensure the wire remains intact throughout its use.
Ultra fine copper wire is best suited for low-current applications. While it is highly efficient for delicate circuits and precision tasks, it may not be ideal for heavy-duty, high-power applications. Its current-carrying capacity is limited due to its small gauge, so it is primarily used in microelectronics, telecommunications, and medical devices that require low-current operation.
While ultra fine copper wire performs well in many environments, it can be less effective in extreme conditions, such as high humidity or exposure to corrosive substances. Its small size may also make it more susceptible to damage from environmental factors, potentially impacting its long-term performance. Extra protection, such as specialized coatings or insulation, may be required in such environments to ensure the wire remains functional.
Ultra fine copper wire can be sensitive to temperature fluctuations, especially when subjected to excessive heat. High temperatures can increase the resistance of the wire, leading to performance issues. It’s important to use ultra fine copper wire within its recommended temperature range to ensure optimal conductivity and reliability.
The ability of ultra fine copper wire to withstand mechanical stress, such as bending or stretching, depends on the specific application and the gauge of the wire. While it offers impressive flexibility, excessive stress can cause it to break or lose its conductivity. It is crucial to consider the mechanical demands of the application and choose the appropriate wire size and insulation to prevent failure.
When used correctly and within its operating parameters, ultra fine copper wire maintains its performance over time. Its reliability ensures that systems using the wire can continue functioning efficiently, even in long-term applications. However, careful consideration of environmental factors and mechanical stresses is necessary to ensure the wire’s durability.
When selecting ultra fine copper wire for your project, it’s essential to consider the specific requirements, such as electrical load, space constraints, and environmental conditions. Different applications will have different needs, and the right gauge of wire should be chosen to meet these demands. For microelectronics, fine gauges such as 36 to 40 AWG are ideal, while higher current requirements may call for thicker wires.
Choosing the correct gauge of ultra fine copper wire is crucial to ensure optimal performance. For applications that require precise connections and low currents, such as microelectronics and medical devices, thinner gauges (36 to 40 AWG) are ideal. However, applications with higher power demands may require thicker wires that can handle greater current loads without overheating or compromising efficiency.
When selecting ultra fine copper wire, it’s important to assess the wire’s current-carrying capacity, resistance, and thermal properties. These factors influence the wire’s overall performance, particularly in applications where reliable conductivity and durability are critical. Ensure that the chosen wire is suitable for the environmental conditions and operational demands of the project.
Gauge (AWG) | Diameter (inches) | Typical Applications |
36 AWG | 0.0059 | Microelectronics, fine wire connections |
40 AWG | 0.0031 | Precision circuits, semiconductors |
44 AWG | 0.0016 | Miniature components, medical devices |
Ultra fine copper wire is critical in applications across electronics, medical devices, telecommunications, and aerospace. Its conductivity, flexibility, and durability make it a preferred material. However, challenges like fragility and limited current capacity must be considered when selecting the right wire.

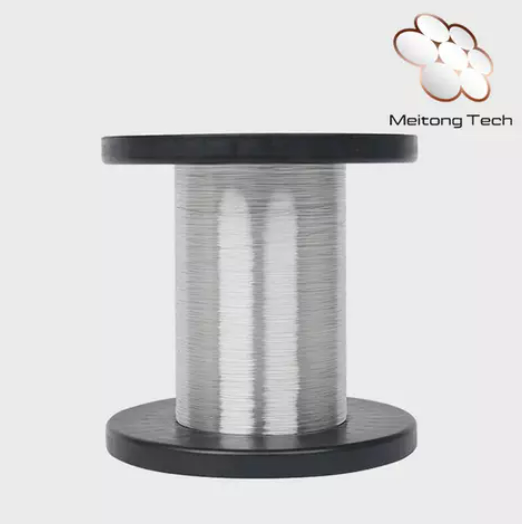

Meitong Conductivity Alloy Materials (Jishui County) Co., Ltd. specializes in producing high-quality ultra fine copper wire. Their advanced manufacturing ensures reliability and performance, supporting industries like electronics and aerospace with tailored solutions.
A: Ultra fine copper wire, also known as ultra-thin copper wire, is a very small-diameter wire with exceptional electrical conductivity and flexibility. It is used in high-performance applications across industries like electronics, telecommunications, and aerospace.
A: Ultra fine copper wire has a much smaller diameter, typically between 30-50 AWG, allowing it to be used in applications with limited space and requiring precise, high-performance wiring. It offers enhanced flexibility and electrical conductivity compared to standard copper wire.
A: Ultra fine copper wire is commonly used in microelectronics for microchip connections, in medical devices like pacemakers, in telecommunications for signal transmission, and in aerospace for lightweight wiring solutions.
A: Fine copper wire is crucial for electronics due to its excellent conductivity and small size, allowing for intricate, space-efficient wiring in devices like microchips, semiconductors, and high-frequency circuits.
A: Ultra fine copper wire provides high conductivity, flexibility, and durability. It allows for greater packing density in systems, improving performance while maintaining reliability in demanding environments like aerospace and medical devices.
