In the world of electrical engineering and high-performance wiring, Silver Plated Copper Stranded Wire stands out as a top-tier solution. Known for its excellent conductivity, thermal stability, and superior corrosion resistance, this type of wire is an ideal choice for industries where performance cannot be compromised. Whether you're dealing with aerospace technologies, military-grade equipment, or precision instruments, the advantages of silver-plated copper stranded wire go far beyond traditional alternatives.

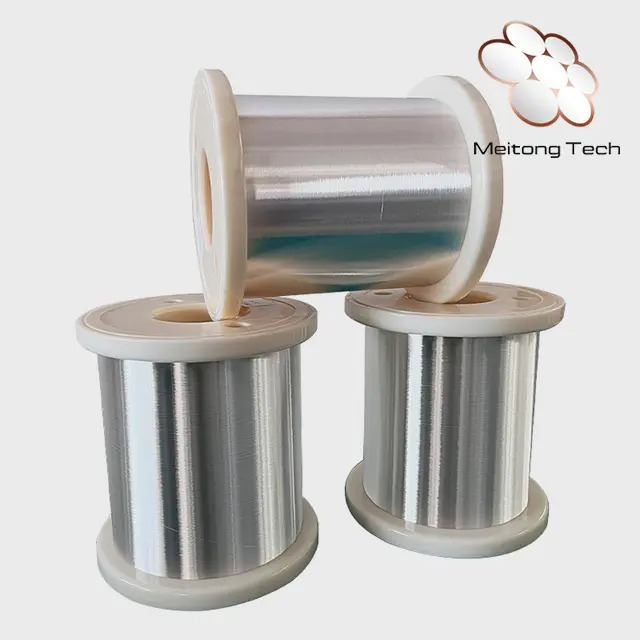

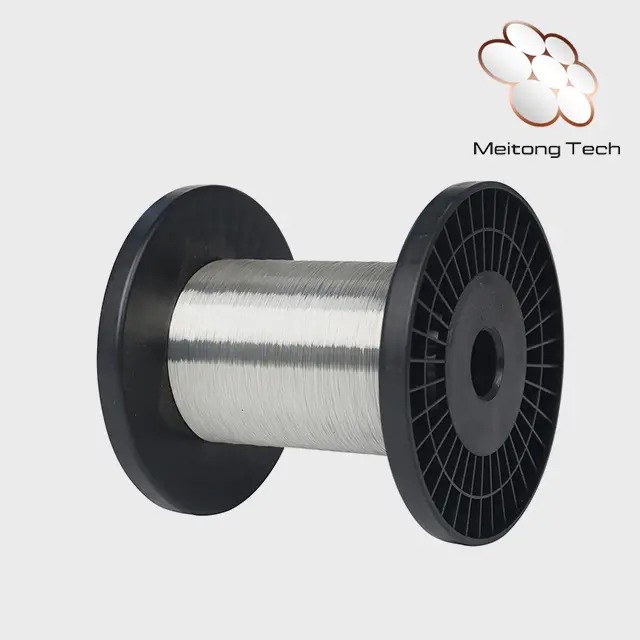

Silver plated copper stranded wire is a specialty electrical wire composed of multiple strands of copper wire coated with a thin layer of silver. The term “stranded” refers to the construction: rather than a single solid conductor, the wire is formed by twisting together many smaller copper strands. This makes it more flexible and resilient to vibration and movement — ideal for dynamic or sensitive environments.
The silver plating on the copper strands provides a layer of protection and enhanced conductivity. Silver is the best natural conductor of electricity and heat, outperforming copper in both categories. Although silver is more expensive, the combination of copper’s cost-efficiency and silver’s performance benefits makes this hybrid wire a compelling choice.
The silver layer also helps in mitigating oxidation and improving solderability. In demanding environments — particularly those involving high frequencies or elevated temperatures — this type of conductor offers long-lasting reliability and stable performance.
One of the standout characteristics of silver-plated copper stranded wire is its electrical performance. Silver has the highest electrical conductivity of all metals, even higher than pure copper. The silver plating ensures that the outermost layer — where electrical current tends to travel (a phenomenon known as the “skin effect”) — benefits from this exceptional conductivity.
In applications involving high-frequency signals or RF (radio frequency) systems, where current tends to migrate to the wire’s surface, silver’s superior properties can make a significant difference. This enables more efficient signal transmission and minimal energy loss, which is critical for precision instruments and communication systems.
| Property | Silver Plated Copper Wire | Bare Copper Wire | Tin Plated Copper Wire |
|---|---|---|---|
| Conductivity (IACS %) | ~105% | 100% | ~85% |
| Corrosion Resistance | Excellent | Moderate | Good |
| Solderability | High | Moderate | Good |
| Cost Efficiency | Moderate | High | Moderate |
Operating in high-temperature or corrosive environments? Silver plated copper stranded wire delivers exceptional resistance to both heat and oxidation. Silver can withstand temperatures up to 200°C and beyond, depending on the insulation used. Combined with high-grade fluoropolymer or PTFE insulation, the wire is perfect for applications in aerospace, defense, and even marine environments.
The silver plating prevents oxidation on the copper surface — a common problem that affects conductivity over time. In settings with high humidity, salt exposure, or chemical vapors, silver remains stable and prevents the degradation that typically affects bare copper. This makes it a great long-term investment for installations where reliability is key.
Stranded wire is naturally more flexible than solid core wire, but when you add the malleable nature of silver and the ductility of copper, you get a conductor that bends without breaking. This property is especially important for robotics, automated machinery, and mobile electrical systems that experience constant motion or vibration.
The mechanical strength of silver-plated copper stranded wire also contributes to its longer lifecycle. Unlike other materials that may crack under stress or develop micro-fractures due to vibration, this wire maintains integrity even in highly dynamic environments. Its resilience makes it well-suited for aircraft, satellites, automotive systems, and complex control panels.
This high-performance conductor has a broad range of applications across several industries. Below are the key sectors that benefit from using silver plated copper stranded wire:
The aerospace industry demands precision, weight efficiency, and reliability under extreme conditions. Silver-plated copper stranded wire offers the perfect balance between electrical performance and mechanical resilience, making it the go-to choice for avionics systems, navigation equipment, and communications arrays.
Medical devices such as imaging machines, surgical robots, and diagnostic instruments rely on clean signal transmission and stable electrical performance. Silver plating ensures low-resistance pathways, crucial for sensitive electronic circuits.
In electric vehicles and advanced automotive systems, efficiency and compact design are vital. Silver-plated wires are often used in battery management systems, motor controls, and in-cabin electronics due to their superior conductivity and space-saving flexibility.
When selecting silver plated copper stranded wire, several technical parameters must be evaluated to match the specific application:
Conductor Size (AWG): Ranges from ultra-fine gauges for microelectronics to thicker conductors for power transmission.
Stranding Construction: Custom configurations (e.g., 7/36, 19/34, 37/28) impact flexibility and strength.
Plating Thickness: Typically ranges from 40 microinches to 100 microinches, depending on durability requirements.
Insulation Material: Options include PTFE, FEP, ETFE, and more, chosen based on thermal or chemical resistance needs.
| Specification | Value |
|---|---|
| Conductor Material | High Purity Copper |
| Plating | Silver (ASTM B298) |
| Stranding | 19/34, 37/28, Customizable |
| Insulation | PTFE / FEP / ETFE |
| Operating Temperature | -60°C to +200°C |
| Voltage Rating | 300V – 600V |
Customization options are often available depending on the manufacturer, allowing buyers to specify strand count, plating thickness, and insulation for specialized projects.
A: Silver offers better electrical conductivity and superior corrosion resistance. In high-frequency or high-temperature applications, silver-plated copper wire outperforms tin-plated and bare copper in both performance and longevity.
A: Yes, especially in mission-critical applications. The higher upfront cost is offset by longer service life, reduced maintenance, and improved efficiency. It’s an investment in reliability.
A: Typically, the silver is electroplated onto the individual copper strands before stranding. This process ensures a uniform coating that adheres firmly to each strand, providing consistent performance across the entire wire length.
A: Absolutely. The silver coating resists corrosion from moisture, salt spray, and atmospheric chemicals, making it ideal for use in harsh outdoor or marine conditions.
When it comes to high-stakes applications where efficiency, conductivity, and durability matter most, silver plated copper stranded wire offers a top-performing solution. Its unique combination of silver’s conductivity and copper’s affordability, along with unmatched thermal and mechanical stability, makes it ideal for advanced industries like aerospace, automotive, and medical technology.
Whether you're upgrading your current electrical system, designing a new piece of equipment, or specifying wiring for critical infrastructure, this wire type is more than just a conductor — it’s a long-term solution. With customizable options and extensive application compatibility, silver plated copper stranded wire stands out as a premium choice for professionals who demand the best.
