A solar cable links solar panels to your solar power system. You need the right cable to keep your system safe. The right cable helps your system work well. If you use the wrong cable, you might lose energy. The wrong cable can even cause a fire. Wiring and connector problems cause 83% of solar project failures. Some companies make cables for different needs. You can also get custom cables for special setups.
Aspect | Impact on Efficiency and Safety |
|---|---|
Cable Management | Lowers energy loss and electrical risks. It helps your system last longer. |
High-Quality Insulation | Keeps electricity moving well. It stops energy loss from resistance or voltage drop. |
Environmental Resistance | Protects against heat and sunlight. Cables work better outside. |
Pick the right solar cable so your solar power system works safely and well. The right cable stops energy loss and lowers fire risks.
Find solar cables with strong insulation and that can handle tough weather. These things help cables last longer and work better.
Learn about the types of solar cables, like PV wire and USE-2 wire. Each type has its own use and good points for your solar setup.
Check your solar cables often and take care of them to stop damage. Good care keeps your system safe and working right.
Talk to experts like Meitongtech for special cable solutions. Their help makes sure you get the best cables for your solar project.

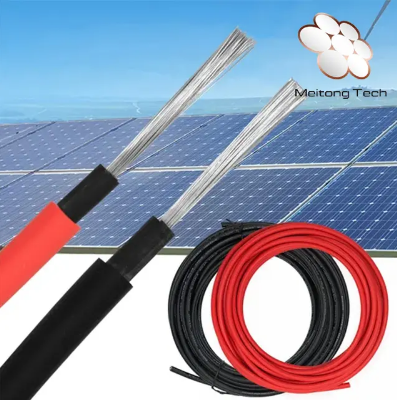

A solar cable connects parts of a solar energy system. It moves electricity between solar panels, inverters, batteries, and the grid. There are three main types of solar cables:
DC solar cable joins solar panels together. It carries direct current.
Solar DC main cable links groups of panels to the inverter. It carries higher voltage DC.
AC connection cable connects the inverter to the building’s grid. It carries alternating current.
Solar power cables are important for every solar pv system. They help move electricity safely and easily. If you do not use the right cable, your system will not work well.
Tip: Always check which cable you need before you start your solar project. The right cable helps you avoid losing energy and keeps you safe.
Solar cables do more than move electricity. They help keep your solar power system safe and working. You should know what they do:
Function | Description |
|---|---|
Interconnecting Solar Panels | Connects many panels together. |
Connecting Panels to Inverters | Sends electricity to inverters to change DC to AC. |
Battery Connections | Links panels and inverters to batteries for storage. |
Grounding Systems | Gives a safe path to the ground to stop faults. |
Special solar cables have extra benefits. You want cables that bend, last long, and have strong insulation. These things help your system work better outside and last longer. Look for these important features:
Key Aspect | Explanation |
|---|---|
Flexibility | Stranded cables bend easily. You can put them in small spaces. This helps stop damage. |
Durability | Good cables handle shaking and changes in temperature. They work well in any weather. |
Insulation | Strong insulation protects from sun, water, and heat. It stops energy loss and short circuits. |
Wire Gauge | Thicker wires carry more electricity without getting too hot. This keeps your equipment safe. |
You should buy solar power cables from companies that care about quality and custom options. At Meitongtech, we make special solar cables for many uses. We offer bimetal fine wire, special alloy wire, tinned copper braided wire, ultra fine silver-copper wire, and solar cables. We use good materials and check quality to make sure our cables work for you. You can ask us for custom cables for your solar pv system. We will help you pick the best cable for your project.
Some people think all cables are the same. But solar cables and regular cables are different. Solar cables are made for tough weather outside. Regular cables are better for inside use. They might not last long outside.
Here is a table that shows how solar cables and regular cables are different:
Feature | Solar Cables | Regular Cables |
|---|---|---|
Insulation Material | Cross-linked polyethylene (XLPE) | Polyvinyl chloride (PVC) |
Resistance | Excellent against sunlight, heat, and weather | Less resistant to sunlight and weather |
Flexibility and Protection | Flexible, moisture-resistant, flame-resistant | Not as much protection |
Environmental Compatibility | Handles high and low temperatures, acid, oil | May not handle harsh conditions |
Color Coding | Black for negative (-), red for positive (+) | No special color coding |
Lifespan | Long service life | Shorter lifespan indoors |
Solar cables use XLPE and TPE for insulation. These materials block UV rays and water. Regular cables use PVC. PVC does not last long in the sun. Solar cables bend easily and do not catch fire. This makes them safe for outside use.
Tip: Use outdoor cables if you want your solar system to last longer.
Solar cables work better than regular cables in solar systems. They can handle strong sun, rain, and big temperature changes.
Here is a table that shows how solar cables and regular cables perform:
Factor | Solar Cable | Regular Cable |
|---|---|---|
Material Construction | Cross-linked Polyolefin (XLPO) | PVC or Thermoplastic |
Environmental Resistance | 2,000+ hours UV exposure | 6-12 months in sunlight |
Temperature Range | -40°C to 120°C | -20°C to 70°C |
Electrical Performance | 1.5kV DC (UL 4703) | 600V AC max |
Lifetime & Durability | 25+ years | 5-10 years |
Solar cables do not break down in the sun. They last over 2,000 hours outside. Regular cables can break in less than a year. Solar cables work in very hot or cold weather. Regular cables cannot handle these temperatures. Solar cables also carry more voltage. This is important for solar power.
Solar cables use waterproof materials to stop water and rust.
They stay bendy even when it is very cold.
Solar cables use tinned copper and special coatings to stop saltwater damage.
If you want a safe solar system, use solar cables made for outside. Meitongtech has cables with strong insulation and long-lasting materials for your solar projects.
It is important to know what is inside a solar cable. The conductor material is the main part that moves electricity. Most solar cables use copper or aluminum. Copper lets electricity flow easily and lasts a long time. Aluminum is lighter and costs less money. Some cables use copper-clad aluminum. This gives a good mix of price and performance.
Material | Conductivity (S/m) | Resistivity (Ω•m) |
|---|---|---|
Copper | 5.98×10⁷ | 1.68×10⁻⁸ |
Aluminum | 3.5×10⁷ | 2.82×10⁻⁸ |
Copper is heavier and lets more electricity flow than aluminum.
Aluminum is lighter, cheaper, and bends more easily, so it is simple to use.
Aluminum only lets about 60% as much electricity flow as copper.
Copper does not rust and works well in bad weather. You lose less energy and your cable lasts longer with copper. Aluminum is easier to put in and move, but it can rust and not work as well over time. Solar cables can last 25 to 30 years if you pick the right conductor and install them well.
Insulation covers the conductor and keeps people safe. Solar cables use different insulation to handle heat, cold, and fire. You often see TPE, PVC, EPDM, and fluoropolymers used for insulation.
Insulation Material | Temperature Rating | Key Characteristics |
|---|---|---|
TPE | Flexible, durable | Good for homes and businesses |
PVC | -15°C to 70°C | Cheap, okay resistance |
EPDM | -40°C to 90°C | Great for sun and weather |
Fluoropolymers | -200°C to 260°C | Handles high heat and chemicals |
Insulation must stop fire and follow safety rules. XLPE can take high heat and does not burn fast. PVC has chemicals that help stop fire. LSZH insulation makes little smoke and no bad gases if there is a fire. Rules like IEC 60332-1 and UL 4703 make sure solar cables do not let fire spread.
Tip: Always look at the insulation rating before you buy a solar cable. Good insulation keeps your system safe and working for a long time.
Solar cables must work outside in tough places. You need cables that can handle heat, cold, sun, water, and chemicals. PV1-F cables work from -40°C to +90°C. They can take strong sunlight because they have UV stabilizers. The outside layer keeps out water and stops damage. Some cables have special coatings to stop rust in salty or factory areas.
Cables that handle hot and cold keep working in all seasons.
UV resistance keeps the cable safe from sunlight.
Moisture resistance keeps rain and wetness out.
Strong cables do not break from wind or moving.
Chemical resistance helps cables last in places near the sea or factories.
Environmental Challenge | Solution |
|---|---|
UV Radiation | UV stabilizers and good materials |
Temperature Extremes | Flexible mounting and space to expand |
Weather Exposure | Strong mounting and less shaking |
Corrosion | Special coatings and the right materials |
You should pick solar cables that can handle tough weather. This helps your system last longer and stay safe outside.
When you set up a solar power system, you need to choose the right type of solar cable. Each type has its own features and best uses. Let’s look at the three main types you will find in most solar installations.
PV wire is the most common cable you will see with solar panels. You use it to connect solar panels to inverters and other equipment. PV wire stands out because it is tough and flexible.
Made with strong insulation like XLPE or TPE for long life.
Handles high voltages, up to 1000 volts or more.
Works well in temperatures from -40°C to 90°C.
Resists sunlight, so it will not break down outside.
Safe for homes because it does not burn easily.
Flexible, which makes it easy to install around corners.
You will find PV wire in solar panel arrays and between modules and inverters. It is essential for safe and efficient operation of your photovoltaic system.
Cable Type | Voltage Rating | Flexibility |
|---|---|---|
PV Wire | 600 V, 1000 V, 2000 V | Always flexible |
USE-2 | 600 V | Not always flexible |
Tip: PV wire is the best choice for outdoor solar panel connections because it lasts a long time and handles tough weather.
USE-2 wire is another type you might use with solar panels, especially for wiring that goes underground or in special places.
Application Type | Description |
|---|---|
Solar Panel Installations | Good for wiring solar panels together. |
Underground Service Entrance | Works well for underground wiring. |
Utility and Direct Burial | Can be buried directly in the ground. |
General Wiring Applications | Used for many wiring needs. |
Standards Governing Use | Follows ANSI and NEC standards for safety. |
USE-2 wire uses insulation like XLPE. It resists heat, moisture, and chemicals, so you can use it underground. However, it does not have the same UV protection as PV wire. It is best for places where the cable will not get much sunlight.
Feature | USE-2 Wire | PV Wire |
|---|---|---|
Insulation Material | XLPE | XLPE or TPE |
UV Resistance | Not as strong | Superior |
Environmental Resistance | Good for underground, not for long sun use | Great for outdoor and sunlight |
Voltage Rating | 600 V | Up to 1000V or more |
THHN wire is a general-purpose wire. You might see it in some solar power systems, but it is not made for outdoor solar panel use.
Wire Type | Use Case in Solar Installations | Limitations |
|---|---|---|
THHN | Used in grounding systems | Not for long sun exposure; shorter lifespan than PV wire |
PV | For whole solar panel life | Lasts 25-30 years outdoors |
You can use THHN wire inside buildings or for grounding. It does not last long in sunlight, so it is not the best choice for outdoor solar panel wiring. PV wire lasts much longer and handles weather better.
Note: Always pick the right solar cable for your project. PV wire is best for outdoor solar panels, USE-2 works well underground, and THHN is for indoor or grounding use.
When you pick a solar cable for your solar panels, you get many good things. These cables are made to last and keep your system safe.
Solar cables can handle bad weather, scratches, and water. They work in rain, snow, or dusty places.
Double insulation keeps water and dust out. This makes your system work well outside.
These cables can take high voltage and current. PV wire can handle up to 1500V DC. This helps stop overheating and energy loss.
Solar cables follow strict safety rules like UL 4703 and IEC 62930. They do not catch fire easily and do not have harmful chemicals. This keeps you safe from electrical dangers.
Good solar cables can make your system work up to 5% better. This helps you save money over time.
Strong cables mean you do not need repairs often. They last through hot and cold weather and strong sun. This lowers how much you spend on fixing them.
Using the right cable stops energy loss and helps the environment.
Note: Good solar cables help your solar power system last longer and work better. This gives you more value for your money.
Here is a table that shows how solar cables help your system last longer and cost less to fix:
Benefit | Explanation |
|---|---|
Designed for durability and efficiency | Keeps your system working well for many years. |
Minimizes system failure risk | Fewer breakdowns mean less downtime and lower repair costs. |
Long-term durability = better value | You spend less on replacements and repairs over the life of your system. |
You should also know about some problems with solar cable use and setup.
You need to check cables often to find damage early.
If you put cables in the wrong place, they can get pulled or cut. This can hurt the insulation during setup.
Changes in temperature can make cables weaker over time.
Sunlight and damage you can see can make cables work worse.
Loose ends and rust can lower how well your system works.
Some project costs and time can also change:
Putting in PV wire takes time and skilled workers. This can make it cost more.
Heavy or thick cables are hard to move and bend.
Cables underground need extra digging work.
If cables do not follow building rules, you might have to do the work again. This can cause delays and cost more money.
Problems getting cables or bad quality can slow down your project and make it cost more.
Tip: Plan well and check your cables often. This helps you stop most problems and keeps your solar power system working well.
Picking the right cable is very important for your solar system. If you pick the wrong one, your system might lose power or become unsafe. You can stop these problems by knowing what to look for and how to put in cables the right way.
When you choose a cable for solar panels, you must think about some main things. Each thing helps your system work well and stay safe for a long time.
Factor | Description |
|---|---|
Voltage Rating | The cable’s voltage rating should be higher than your system’s top voltage. |
Current Carrying Capacity | Pick a cable that can take the most current without getting too hot. |
Weather Resistance | Choose cables that block UV rays, water, and very hot or cold weather. |
Flexibility | Use cables that bend easily in cold weather for simple setup and fixing. |
Certifications | Find cables with UL, TÜV, or CE marks to make sure they are safe and work well. |
You should also remember these points: Keep the DC voltage drop under 1%. Never let it go over 2%. Make sure the total cable loss is less than 1.5% so you get the most energy. Think about how you lay the cable, the weather, and the distance. These things change how much current the cable can take.
Always check the cable size when you pick a solar cable. The cable must fit your system’s current and voltage. It should also handle heat from the sun and the electricity. If you put cables near the panels, make sure they can handle tough weather.
You should also look for certifications and safety rules. Here are some important ones:
Standard/Code | Description | Impact on Cable Selection |
|---|---|---|
National Electrical Code (NEC) | Sets rules for safe wiring in solar PV systems. | Makes sure cables are put in safely. |
International Electrotechnical Commission (IEC) | Makes global rules for solar PV arrays. | Needed for projects in other countries and cable setup. |
Local Building Codes | Adds extra rules for your area. | Makes sure your setup follows local laws. |
Tip: Always pick cables that meet or are better than these rules. This helps your system last longer and work better.
If you want a cable made just for you, find a supplier that can make custom cables. At Meitongtech, we talk with you to learn about your project. We design the best cables, use good materials, and make them with new machines. Our team checks every cable before sending it to you and helps with setup and service after. You can trust us to help you get the right cable for your solar panels.
Many people make mistakes when picking or putting in cables for solar panels. These mistakes can make your system unsafe or not work as well.
Bad wire management: If wires are left out, tangled, or loose, your system can break or become unsafe.
Not following NEC or local rules: Not following these rules can make your system unsafe and cause legal trouble.
Wrong cable size: If the cable is too small, it can get too hot and waste power.
Installers with little experience: People who do not know the right way may make mistakes when setting up cables.
Not using conduit or protection: Cables without protection can get damaged and cause shorts or fires.
Bad wiring and loose ends make resistance. This resistance makes heat, which can lower your system’s power and even start fires.
You can make your solar setup safer and better by following these tips:
Best Practice | Description |
|---|---|
Picking the right wire size | Use the right wire thickness for your system’s voltage and current. Outdoor copper wires work best. |
Making sure everything is grounded | Ground all parts of your system to stop shocks and fires. |
Using good connectors | Pick MC4 or Amphenol connectors for strong, weather-safe connections. |
Plan your system with a Single Line Diagram (SLD) to check all connections.
Label all cables with color tags so you can find them easily.
Keep cables neat and tie them down to stop them from moving and wearing out.
Use conduit and strong covers to keep cables safe from weather and damage.
Always follow the maker’s instructions for connectors and cable paths.
Check all connections to make sure they are tight before turning on your system.
If you need help, pick a supplier that gives technical support and service after you buy. Meitongtech gives expert help, custom cables, and support. Our team helps you avoid mistakes and makes sure your solar cable setup is the best it can be.
Remember: Good planning, the right cables, and expert help make your solar system last longer and work better.
Picking the right solar cable keeps your solar power system safe. It also helps your system work well. When you know about cable types, you protect your solar energy investment. You should choose trusted companies like Meitongtech. Ask them if they can make special cables for your project.
Choose cables that fit what your system needs.
Make sure the cables have strong insulation and can handle bad weather.
Get help from experts when you put in the cables.
Making good choices helps your solar power system last longer.
Solar cables have special insulation and conductor materials. They protect better from sunlight, water, and temperature changes. Regular wires do not last long outside.
Tip: Use solar cables for outdoor solar panel wiring.
Check your system’s voltage and current first. Use a cable size chart to help you choose. Thicker cables carry more electricity and stay cooler.
System Size | Recommended Cable Gauge |
|---|---|
Small | 12 AWG |
Medium | 10 AWG |
Large | 8 AWG |
Yes, you can put solar cables underground. Pick cables with strong insulation and moisture resistance. USE-2 wire is good for underground solar panel wiring.
Solar cables can last up to 25 years or more. They last longer if you install them right and use good materials. Meitongtech makes cables that are built to last.
Meitongtech makes custom solar cables for many uses. You get technical support, fast delivery, and good service after you buy. Their cables meet strict safety and quality rules.
Note: Picking Meitongtech helps your solar power system stay safe and work well.
