Copper wire plays a vital role in many industries, from electronics to jewelry making. But do you know what the thinnest gauge of copper wire is? Understanding wire gauges is essential when selecting the right material for your project.
In this article, we’ll explore the thinnest gauges of copper wire, focusing on fine copper wire like 36 AWG and 40 AWG. We’ll look into their applications, advantages, and challenges.
Wire gauges are a standardized way to measure the thickness of a wire. In the United States, the American Wire Gauge (AWG) system is commonly used. This system is inversely proportional, meaning that the smaller the gauge number, the thicker the wire. For example, a 12 AWG wire is thicker than a 24 AWG wire. The AWG system helps ensure consistency across wire manufacturing and is essential for selecting the correct wire size for different applications.
In the AWG system, the thinnest gauges, such as 36 AWG and 40 AWG, are used in applications that require delicate wires with minimal physical space. The gauge size of a wire determines its electrical properties, including its current-carrying capacity, resistance, and conductivity.
When it comes to fine copper wire, the thinnest gauges typically range from 36 AWG to 40 AWG. These gauges are often used in high-precision applications such as microelectronics, sensor wiring, and other specialized uses where the wire must fit into tight spaces or carry low levels of current.

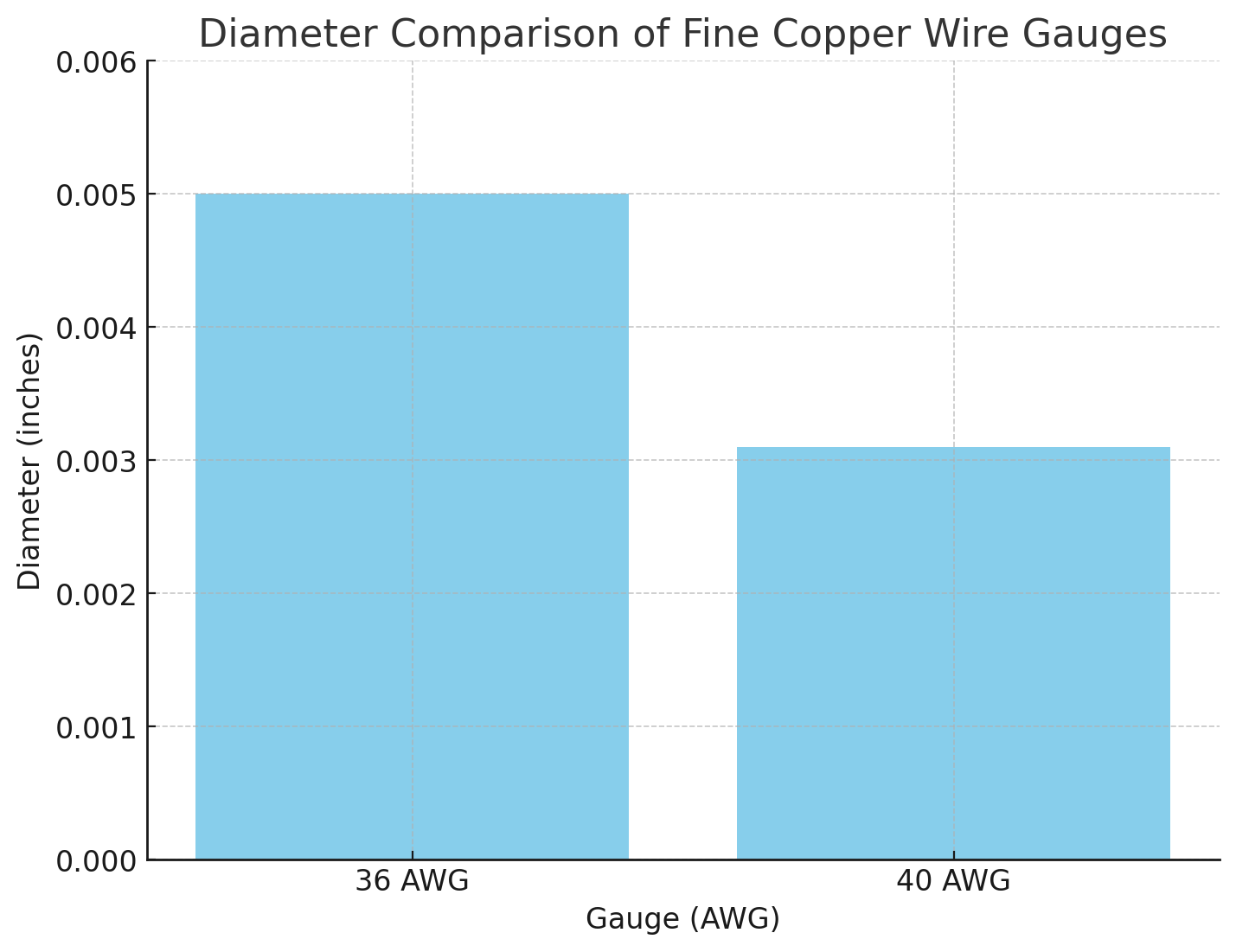

A 36 AWG wire, for example, has a diameter of just 0.005 inches (0.127 mm), while a 40 AWG wire is even thinner, measuring just 0.0031 inches (0.079 mm) in diameter. These ultra-thin wires are perfect for delicate electrical components and intricate wiring tasks, where space and precision are key factors. Thinner gauges, while offering flexibility and precision, are not suitable for carrying high currents due to their limited capacity.
Gauge (AWG) | Diameter (inches) | Common Applications |
36 AWG | 0.0050 | Microelectronics, precision wiring |
40 AWG | 0.0031 | Jewelry making, small sensors |
One of the primary uses for fine copper wire is in the field of electronics and telecommunications. Thin wires, such as 36 AWG or 40 AWG, are used to create highly sensitive circuits, sensors, and antennas. These wires are essential in applications where small, lightweight, and flexible wiring is required, such as in hearing aids, pacemakers, and other small medical devices.
In telecommunications, fine copper wire is used for high-speed data transmission, particularly in areas where space is limited. The low resistance of fine copper wire makes it suitable for transmitting electrical signals with minimal loss, ensuring that data is transferred efficiently over long distances.
Jewelry makers frequently use fine copper wire for its flexibility and ability to be shaped into intricate designs. Gauges such as 24 AWG and 26 AWG are commonly used for wire wrapping, coiling, and weaving techniques. The thinner the wire, the more precise and detailed the jewelry can be. Fine copper wire allows for delicate designs, making it perfect for creating detailed wire sculptures, earrings, and other custom jewelry pieces.
The soft nature of fine copper wire also makes it easy to manipulate without breaking, allowing artisans to craft complex, delicate patterns that are often used in high-end jewelry and unique craft projects.
Besides jewelry making and electronics, fine copper wire has various other applications in medical devices, instrumentation, and precision engineering. In medical devices, ultra-thin copper wire is used in implantable devices like pacemakers, where both space and electrical conductivity are critical. Similarly, in instrumentation, fine copper wire is used to connect sensitive components that require precise electrical connections without risk of damage or interference.
Project Type | Recommended Gauge (AWG) |
Microelectronics | 36 AWG, 40 AWG |
Jewelry making | 24 AWG, 26 AWG |
Medical devices (e.g., pacemakers) | 36 AWG, 40 AWG |
Telecommunications and data transmission | 36 AWG, 40 AWG |
Flexibility is one of the primary benefits of using fine copper wire. Because of its small diameter, it can easily bend and conform to tight spaces, making it ideal for applications like microelectronics, sensor wiring, and intricate jewelry designs. The flexibility of fine copper wire also allows it to be coiled or twisted into complex shapes without breaking.
Cost-effectiveness is another advantage. While fine copper wire may be more expensive on a per-meter basis than thicker wires, its ability to fit into small spaces and its use in specialized applications often make it more cost-effective for specific projects. For bulk applications like data transmission or precision engineering, the ability to use thinner wire in limited spaces can reduce overall material costs.
However, using fine copper wire also comes with its challenges. The most significant issue is its fragility. Thinner wires are more prone to breaking or being damaged during installation or handling. This makes it important to handle fine copper wire carefully, as excessive bending or twisting can cause it to snap.
Another challenge is related to conductivity. While copper is an excellent conductor, the thinner the wire, the higher the resistance per unit length. Fine copper wire has a limited current-carrying capacity compared to thicker wires. This means that fine copper wire is not suitable for high-power applications, as it could lead to overheating or failure.
Advantages | Challenges |
High flexibility | Limited current-carrying capacity |
Cost-effective for small applications | Fragility in delicate tasks |
Excellent conductivity | Requires careful handling due to thinness |
When choosing fine copper wire for an electrical project, several factors must be considered. The most important factor is the wire’s current-carrying capacity. Thicker wires can handle higher currents without overheating, while thinner wires are suited for low-current, precision tasks. For instance, if you're working on a project that requires connecting small, sensitive components, choosing a gauge in the 36-40 AWG range might be ideal. However, for power-heavy applications like household wiring or industrial machinery, thicker gauges such as 12 AWG or 14 AWG are more suitable.
Fine copper wire performs well in high-precision environments, but its characteristics can change depending on external factors such as temperature, pressure, and bending. Fine copper wire is sensitive to temperature changes, which can increase its resistance and affect its performance. It is also more likely to suffer from wear and tear due to frequent bending or stretching. Therefore, when using fine copper wire, it is important to ensure that the conditions are appropriate for its use, and that the wire is handled with care to prevent damage.

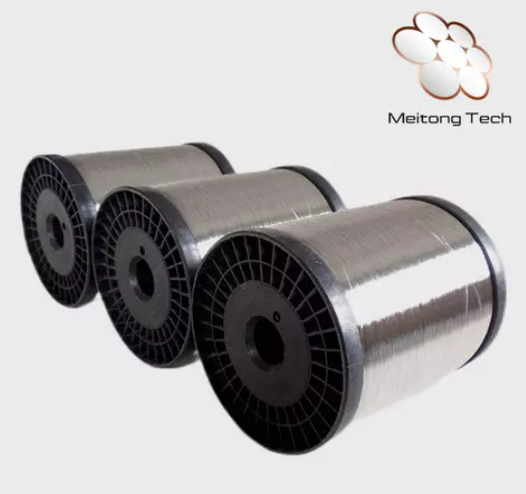

Fine copper wire is crucial for tasks that require precision, flexibility, and conductivity. Its thinnest gauges, such as 36 AWG and 40 AWG, are perfect for microelectronics, jewelry making, and medical devices. While these wires offer flexibility and cost-effectiveness, they also face challenges like fragility and limited current capacity. When choosing the right wire, it’s essential to consider the project’s specific requirements, such as current load, space, and environmental factors. Meitong Conductivity Alloy Materials (Jishui County) Co., Ltd. offers high-quality fine copper wire products designed to meet these precise needs, ensuring optimal performance in specialized applications.
A: The thinnest gauges of copper wire typically range from 36 AWG to 40 AWG. These ultra-fine wires are used in precision tasks like microelectronics and jewelry making.
A: Fine copper wire, especially in gauges like 36 AWG, is used in electronics because it offers excellent conductivity in compact spaces, ideal for sensors and circuit connections.
A: Fine copper wire is highly flexible, making it suitable for intricate designs and tight spaces, especially in applications like jewelry making and microelectronics.
A: The main advantages of fine copper wire include flexibility, high conductivity, and cost-effectiveness for specialized tasks, though it has limitations in carrying high current.
A: No, fine copper wire has a limited current-carrying capacity due to its small diameter, making it unsuitable for high-power applications.
